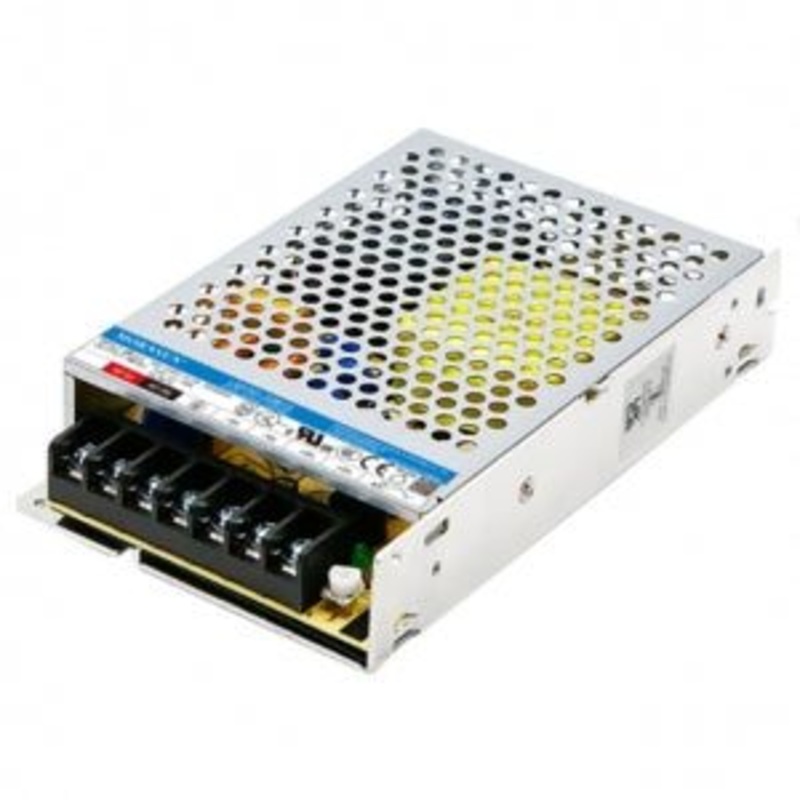

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

Description

Mornsun LM150-22B15 AC/DC 150W Enclosed Switching Power Supply

The LM150-22B15 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264VAC and 180-370VDC. The power rating of the supply is 150W, and it has an output voltage of 15VDC. With a high efficiency of 87% and 4000VAC isolation, the LM150-22B15 is designed to provide reliable power in industrial applications. It is a cost-effective solution with a narrow input range and offers excellent performance.

Features

• Power rating: 150W
• Input voltage range: 165-264VAC, 180-370VDC
• Output voltage: 15VDC
• Output current: 10A
• Efficiency: 87%
• Isolation: 4000VAC

check out :Mornsun LM150-22B12 AC/DC 150W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
