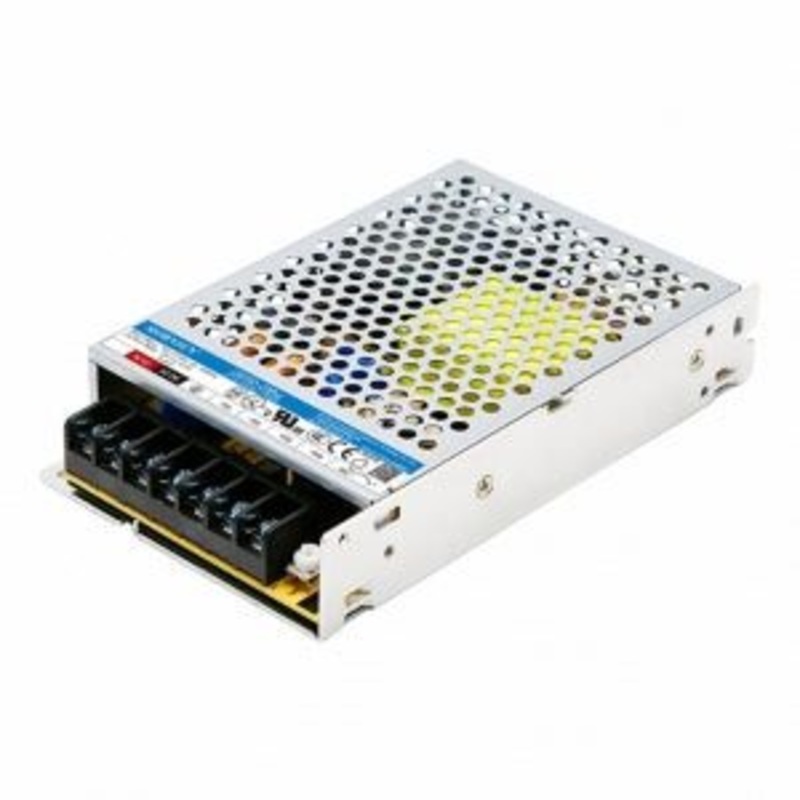

Mornsun LM150-23B24 AC/DC 150W Enclosed Switching Power Supply

Description

Mornsun LM150-23B24 AC/DC 150W Enclosed Switching Power Supply

The LM150-23B24 is a 150W AC/DC enclosed switching power supply from Mornsun. It has a universal input voltage range of 85-305VAC and a single output voltage of 24V. The output current is 6.5A, and the efficiency is up to 88%. The power supply is also equipped with a power factor correction (PFC) function, which helps to reduce the power consumption of the device.

check out :Mornsun LMF100-23B12 AC/DC 100W Enclosed Switching Power Supply

Features:

• Universal input voltage range of 85-305VAC
• Single output voltage of 24V
• Output current of 6.5A
• Efficiency of up to 88%
• Power factor correction (PFC) function

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company’s corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed intothe final equipment. All EMC tests should be confirmed with the final equipment
