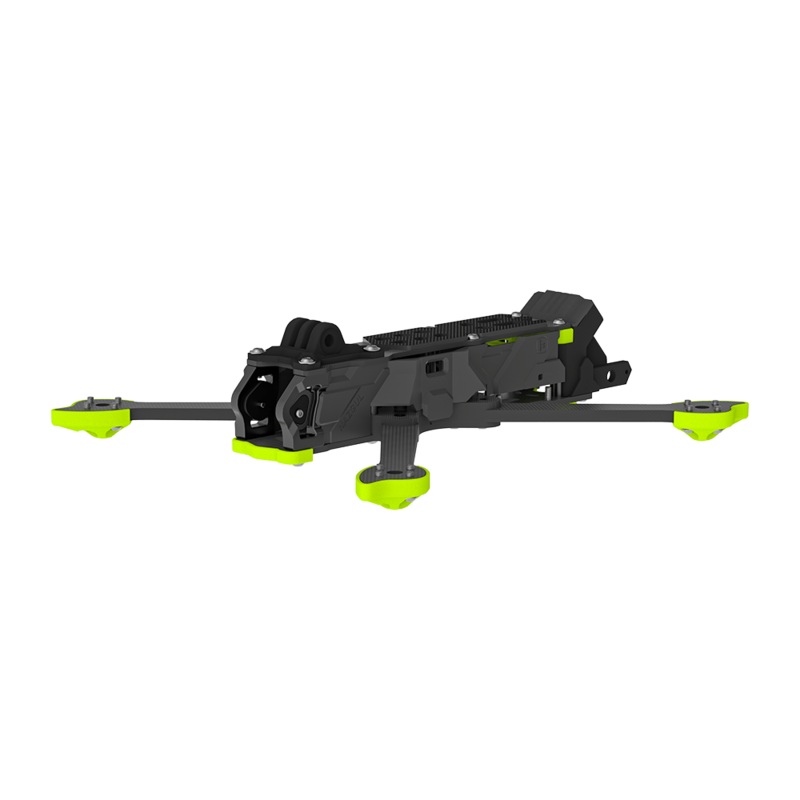

Nazgul XL5 (ECO) V1.1 Frame Kit

Description

The Nazgul XL5 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control.

Note: Nazgul XL5, XL5 ECO and Nazgul5 V3 use the same frame kit!

Features

5″ version also fits 5.1″ style propellers

Fits both 30.5×30.5 and 20×20 stacks

Compatible with DJI O3 HD System

5mm arm design for more durability

Popular True-X configuration

LED illuminated Logo

TPU crash-guards

Easy-Swap arms

Specifications:

Product Name: Nazgul XL5 V1.1 ECO Frame Kit

Geometry: True-X

Wheelbase: 245mm

Frame Dimension: L173*W173*H36.5 mm

Frame Body Dimension: 33.5mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 29mm

Motor Mounting16x16mm

VTX Mounting30.5*30.5 3mm / 25*25 1.6mm / 20*20 2mm

Weight: 233g (Included no TPU Parts)

Packing List:

1 x Nazgul XL5 V1.1 ECO Frame Kit

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Bottom Plate Front Protection TPU

1 x Bottom Plate Rear Protection TPU

1 x Anti-slip Battery Pad

4 x Motor Wire Shield Tube

2 x Battery Strap(20*250mm)

Included only in Version Anti Spark Filter Included

1 x Anti Spark Filter Version 1

The frame assemble guide is included in the kit and also availablehere.
