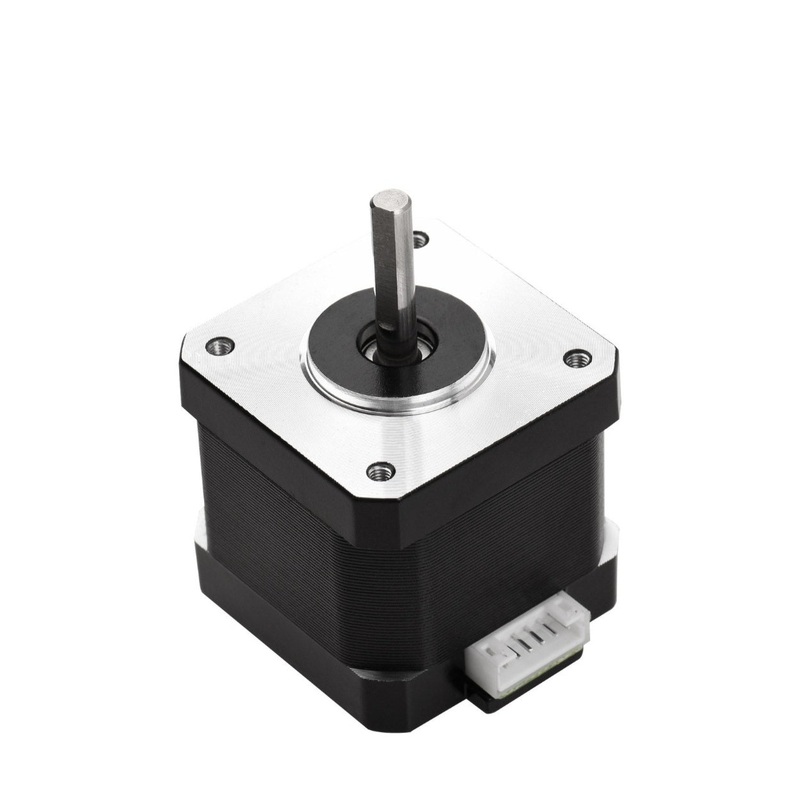

NEMA17 2.8Kgcm Stepper Motor with D-shaft

Parameter

Specification

Motor Type

Bipolar Hybrid Stepper (NEMA17)

Frame Size

42 42 mm

Body Length

34 mm

Step Angle

1.8 (200 steps/rev)

Holding Torque

2.8 Kgcm (0.28 Nm)

Rated Current/Phase

1.3 A

Phase Resistance

2.2

Phase Inductance

2.9 mH

Shaft

5 mm D-shaft, Single Shaft

Rotor Inertia

5060 gcm

Detent Torque

0.20.6 Kgcm (typ.)

Insulation Class

Class B (130C)

Applications

3D printers, CNC axes, linear stages, robotics
