NEW Skystars F405 F4 Flight Controller FC 55A 4in1 ESC Stack 3-6S Lipo BMI270 Betaflight OSD Dshot600 RC FPV racing Drone F4HD2 w 55Astack

Description

Package Included:

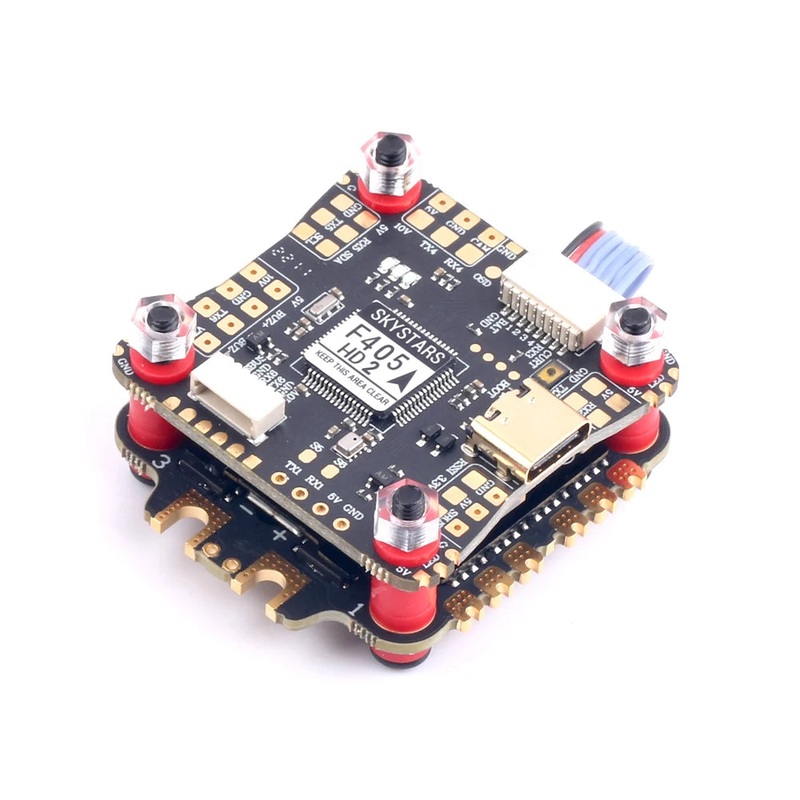

1 x Skystars F405 HD2 Flight Controller

1 x 55A 4 in 1 Brushless ESC

Skystars F4 Flight controller Specification:

MCU: STM32F405

IMU: BMI270

OSD: AT7456E

Blackbox: 16MB

6X Uarts(1 2 3 4 5 6)

WS2812 led Strip: YES

Baro: YES

Beeper: YES

BEC: 5V/3A cont

FC Firmware

Betaflight FC Target: SKYSTARSF405

INAV FC Target:SKYSTARSF405HD

Physical

Mounting: 30.5*30.5mm, 4mm with Grommets 3mm

Dimensions: 36*36mm

Weight: 6g

SKYSTARS 55A 4in1 ESC Specification:

Dimension: 41*46mm

Mounting Holes: 30.5*30.5mm/3mm

Weight:13.3g

Supports 3-6S Lipo input

BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware

Current sensor: YES

BEC: NO

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target: Q-H-30 BLS 16.7

BLHeliSuite download: http://www.mediafire.com/file/1tn449x6815upat/BLHeliSuite16714901.zip/file
