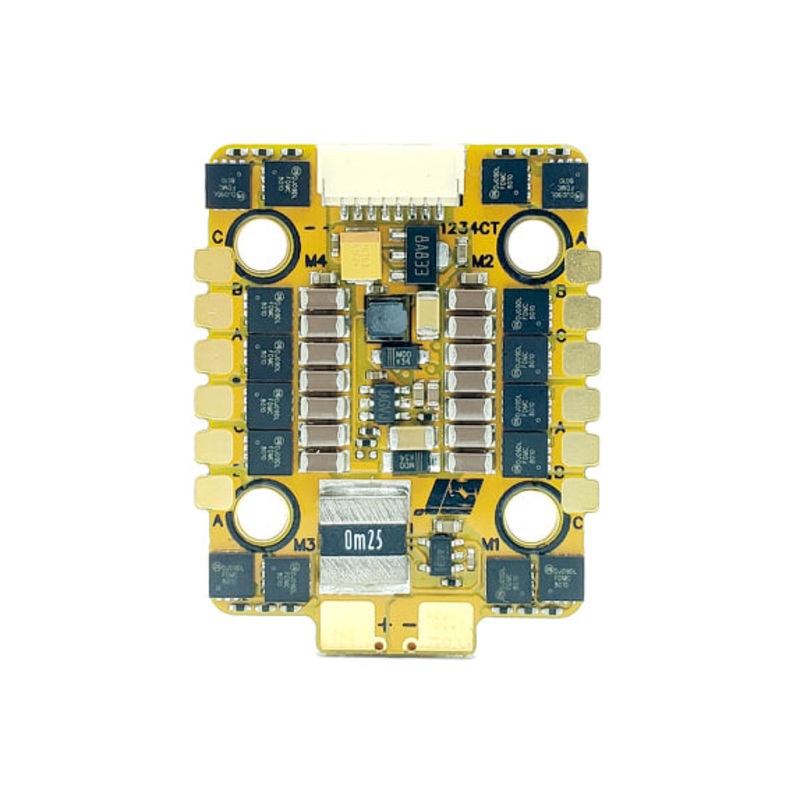

Pyrodrone 32Bit 4-in-1 35A 6S 20×20 “NAKED NO HEAT SINK”

Description

Finally one of the most if not THE most reliable 20*20 Speed controllers now in your favorite color and brand!

As racers we are all striving shaving grams from our builds, With this 20×20 ESC from Aikon you will be able to shave some grams without worrying about reliability.

The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 worth your investment?

• BLHeli_32 code base
• Programmable PWM frequency of up to 48KHz
• Auto-timing for higher efficiency and reliability
• Analog Voltage/Current sensing
• Adjustable Brake on Stop force
• Improve direction change in Bidirectional mode
• One current sensor to measure the total amp draw and telemetry functions.
• ESC Telemetry (Voltage and RPMs and current)
• Configuring from FC using DShot commands
• Programmable sine modulation mode
• Programmable soft bidirectional mode
• Programmable autonomous periodic (every 32ms) telemetry mode
• Hardware noise filter on the signal input

Specifications:

• Battery: 2-6S
• Constant Current: 35A
• Burst Current: 45A
• Mounting holes: 20*20mm M3
• Firmware: BLHELI32
• MCU: STM32PINF0
• Bootloader: Yes
• Weight: 10 Grams Approx.
• Signal wire length: 100mm
• Battery wire length: 100mm

Package Includes:

• 1 xPyrodrone 32Bit 4-in-1 35A 6S 20×20 “NAKED NO HEAT SINK”
• 1 x 14AWG Amass XT60H-M Pigtail
• 1 x Pre-pinned Harness
• 1 x Open End Harness
• 4 x Rubber Grommets
• 1 x 35V 33uF Capacitor
