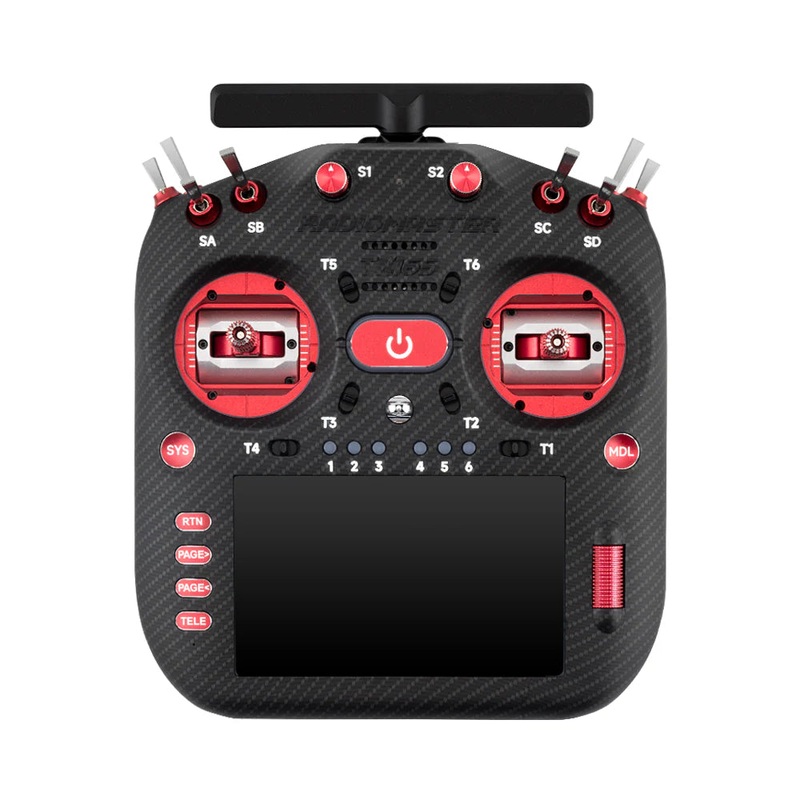

Radiomaster TX16S MK3 MAX Radio Controller - Red

Radiomaster TX16S MK3 MAX Radio Controller – Red

Original price was: $31.00.Current price is: $18.60.

SKU: O75856577 Category:

Description

Radiomaster TX16S MK3 Memory Update

Our current stock of Radiomaster TX16S MK3 radios comes with 4GB internal memory.

Radiomaster has officially announced a transition to 512MB internal flash for all future production of the TX15 and TX16S MK3 radios.

All orders up to now are covered with 4GB units. Once this batch is sold out, incoming radios will feature 512MB internal memory.

If you prefer the 4GB version, now is the timeonce these are gone, theyre gone.

There are no changes to performance or functionality. The 512MB version remains more than sufficient for normal use, and all radios continue to support external SD cards.

RadioMaster builds on the globally trusted TX16S legacy, continuing its commitment to open-source RC innovation. Built for pilots who expect more, the TX16S MK3 MAX represents the pinnacle of the TX16S platformcombining the proven full-size layout with premium materials, advanced controls, and uncompromising attention to detail.

Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness. The bright 5-inch 800480 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

Launch Video

Features

  • High-performance MCU powered by the STM32 H7 chip
  • 5-inch, 800480 IPS touchscreen display
  • AG02 quad-bearing CNC aluminum Hall sensor gimbals (model dependent)
  • Built-in RF module: ExpressLRS (2 LR1121), ISM 2.4GHz and Sub-G 900MHz
  • Smart balance battery circuit for improved efficiency and battery life
  • Cooling system with low-noise fans and aluminum heat sink
  • Digital audio for improved sound quality and reduced interference
  • Dual foldable antennas for compact storage
  • Built-in microphone (future feature expansion)
  • Automatic backlight adjustment
  • Built-in motion sensor (tilt triggers / functions)
  • Integrated 4GB flash memory + MicroSD card support
  • Removable shoulder switch panels
  • JR-compatible external module bay

Specifications

Item TX16S MK3 MAX Radio Controller
Color Blue
Voltage Range 6.6 8.4V DC
Working Current 1.10A (at max RF output power)
Radio Firmware EdgeTX (requires 3.0.0 or higher)
Built-in RF Module ExpressLRS (2 LR1121)
Frequency ISM 2.4GHz and Sub-G 900MHz
Channels Up to 16CH
Gimbals AG02 CNC Hall sensor gimbals
MicroSD Slot Yes (card not included)
Internal Storage Integrated 4GB onboard flash memory
Display 5-inch IPS touchscreen (800 480)
Battery Two 3.7V 18650 Li-ion cells / 21700 Li-ion 5000mAh / 2S 7.4V 6200mAh LiPo (batteries not included)
Upgrade Method USB / EdgeTX Companion PC software
Module Bay JR-compatible module bay
Dimensions 200 178 88 mm
Weight 864 g (without battery)
