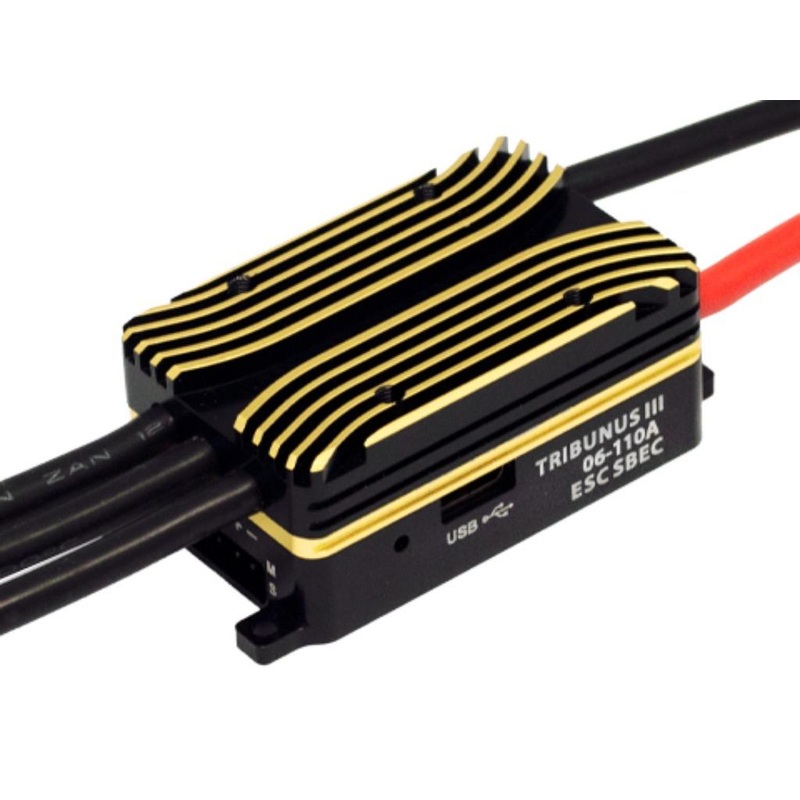

Scorpion Tribunus III 06-110 ESC SBEC : III_06_110

Description

Scorpion Tribunus III 06-110 ESC SBEC : III_06_110

Specifications

• Max Continuous Current : 110 Amps
• Peak Current : 150 Amps
• Operating Voltage Range : 11-26.1 Volts
• BEC Output voltage : 5.1V to 12.1V adjustable
• Max Continuous BEC Output : 10 Amps @ 8.1 V
• Peak BEC Output : 20 Amps/1s @ 8.1 V
• On Resistance : 0.45mohms * 2
• ESC Body Size : 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
• Mounting Tab Dimensions : 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt
• Weight (Without Connectors) : 105g ( 3.70oz)
• Drive frequency : 8kHz – 32kHz

Included in the Box

• 1 x Tribunus III ESC
• 1 x 30mm Cooling Fan
• 2 x BEC Cables
