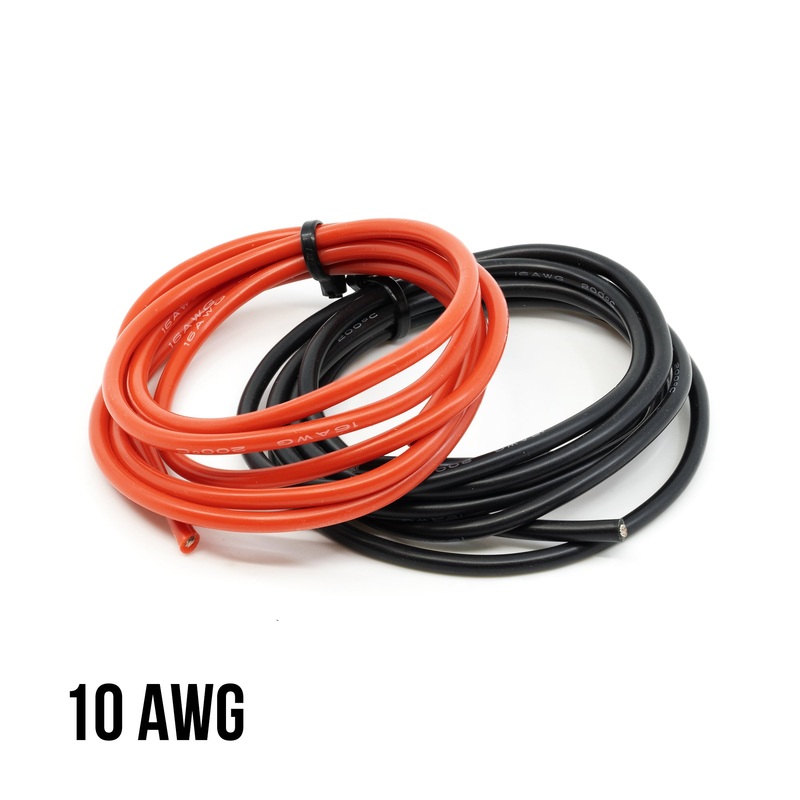

Silicone Soft Heat Proof Wire 1 Metre 10AWG Various Colours Red

Description

pleasechoose the correct thickness for your need, all prices arePER METER.

As an estimation, this is your max curst current for each thickness. The ones in bold are what we stock.

12AWG Wire – 160A (only available in XT60 Pigtail)14AWG Wire – 120A16AWG Wire – 80A18AWG Wire – 45A
20AWG Wire – 27A22AWG Wire – 17A
26AWG Wire – Signals Only
28AWG Wire – Signals only

12 AWG (for XT60 pigtail, high performance 5 racing quad)

14 AWG (for XT60 pigtail, medium power 5 racing quad)

16 AWG (for XT30 and XT60 pigtail, low power up to 80A burst)

18 AWG (for XT30, ESC power, and motor wire extension, up to 45A burst)

20 AWG (For Motor Wire Extension)

Connectors Rating General Guide

Like wires, connectors also havecurrentlimitation, so you should choose carefully based on the application to avoid it becoming the bottleneck of your system. Here are the guideline continuous and burst current.

• JST connector 5A (10A)
• 2mm bullet connectors 20A (40A)
• XT30 30A (60A)
• XT60 connectors 60A (120A)

The wire we stock has the following properties

• Silicon & Flexible
• Heat Proof (200 degrees maximum rating except for signal wires)
• Tinned Copper structure
