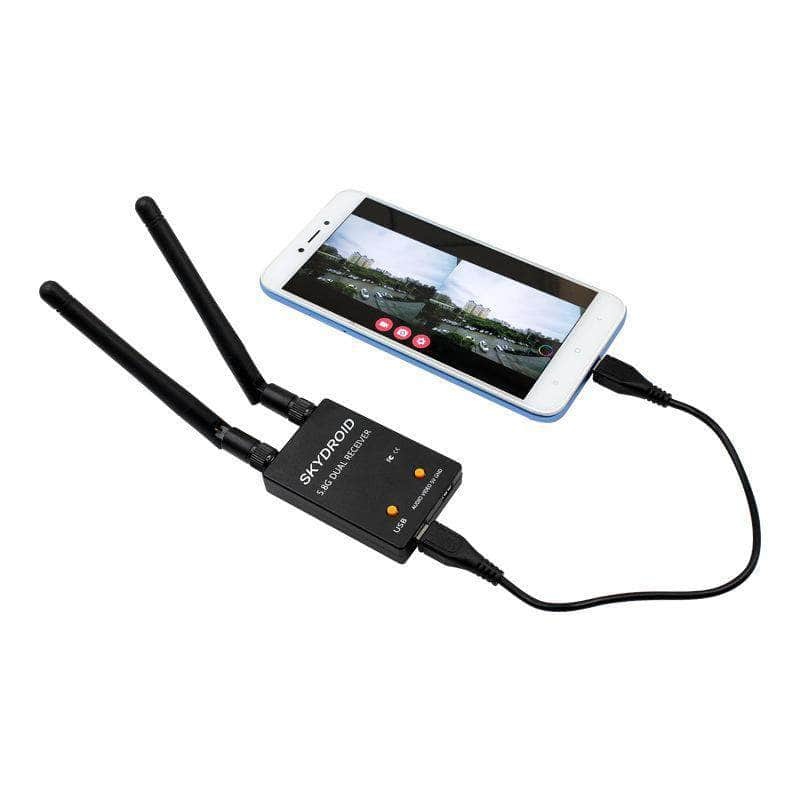

Skydroid 150CH 5.8GHz True Diversity FPV Receiver Module for Smartphone – USB OTG

Description

Turn any Android smartphone or PC into a portable FPV monitor with this handy 5.8GHz receiver!

Check out all ourVideoReceivers!

Features

• 150CH 5.8Ghz analog signal, 1500 scans cover all bands.
• 640×480 30fps,
• Can display frequency spectrum, to check the signal strength of antenna or transmitter.
• Support dual display on smartphone, can be used as VR goggles.

Specifications

• Frequency : 5645MHz~5945MHz
• Channel: 150CH
• Resolution : 640*480 30fps
• Working Current : USB 5V 190mA
• Connector :RP-SMA
• Antenna Impedance: 50
• Antenna Gain: 5db
• Working Temp. : -10~65
• Please calibrate it before use
• Usage: Support Win7, Win10, and Smart Phones such as Android
• Weight: 29g

Please calibrate it in open area, 30m away from transmitter. Power on the device while holding the menu button to enter into calibration mode.

Android App APK

Includes

• 1xSky droid 150CH 5.8GHz True Diversity FPV Receiver Module for Smartphone – USB OTG
• 2x Linear Dipole Antenna(RP-SMA)
• 1x Micro USB Cable
• 1x USB-C Cable
