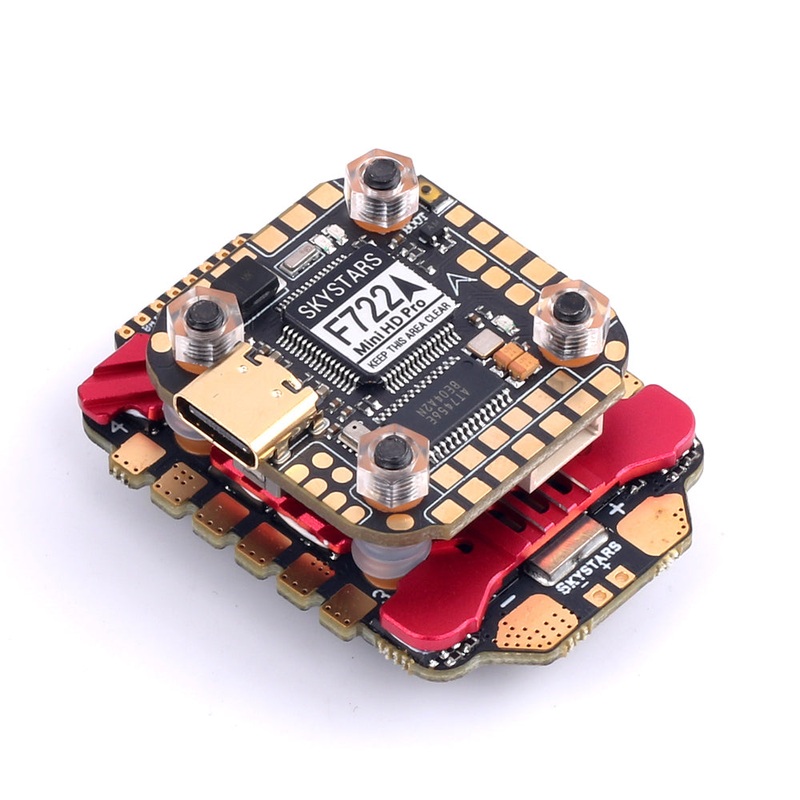

Skystars F7 Mini HDPro Flight Controller F722 + AM55 55A AM32 3-6S 4-in-1 ESC – 20x20mm

Description

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and the AM55 55A AM32 4-i-n1 ESC with a 20x20mm mounting pattern!

Check out all ourStacksand the rest of ourSkystars Products!

Features:

• Designed the LED installation position in the four corners, supporting WS2812 Programable LED.
• Supports serial receivers (CRSF, SBUS, iBus, Spektrum). Support 3.3V Satellite Receiver.
• High-performance / low-noise / high-sensitivity IMU. BMI270 with 6-axis gyro andaccelerometer.
• Support connect DJI HD air module.
• Input voltage 10V-26V (3-6S)
• TVS protect.
• Automatic voltage monitoring.

Specifications:

F722 Mini HD Pro FC

• MCU: STM32F722RGT6 216MHz

• IMU: BMI270 (SPI)

• OSD: Betaflight OSD & DJI HD OSD (UART6)

• 6 hardware UARTS (UART1,2,3,4,5,6)

• 5V 2A & 10V 2A

• Input Voltage: 3-6S Lipo

• Blackbox: 16MB

• Barometer: YES

• Firmware: SKYSTARS F7HD

• Dimensions: 35x28x7mm

• Mounting Holes: Standard 20mm/M3 square to center of holes

• Weight: 4.2g

AM55 55A AM32 4-in-1 ESC

• 55A 4IN1 ESC

• voltage: 3-6S LiPo

• Con.Current: 55A Peak

• Current: 70A 10S

• Firmware: AM_32

• Support : Dshot 600

• Mounting hole : 20X20 mm/M3

• BEC: No

• Product size: 35*47*6.5mm

• Weight: 16.5g

Package Includes:

• 1 x Skystars Fly Stack – F722 Mini + AM55 55A AM32 3-6S 4-in-1 ESC
