Skystars F7HD Stack F722HD Pro 5 OSD & AM60 AM32 4in1 ESC – 30 x 30mm

Description

Skystars F7HD Stack with 30×30 F722HD Pro5 Flight Controller & AM60A 60A ESC! The flight controller Includes 6 UARTS, a 5V/10V 3A Regulator for Caddx Vista or DJI Air Unit, and 16MB Blackbox! The flight controller also has convenient solder pads placed at each corner for easy wiring of LED’s. The AM60A ESC is stable for 6S voltages due to the use of lots of SMD capacitors and a large heatsink for heat dissipation and style. Flashed with the latest AM32 firmware it also support telemetry functions (including voltage RPMS & current)!

Check out all ourStacksand the rest of ourSkystars Products!

Specifications

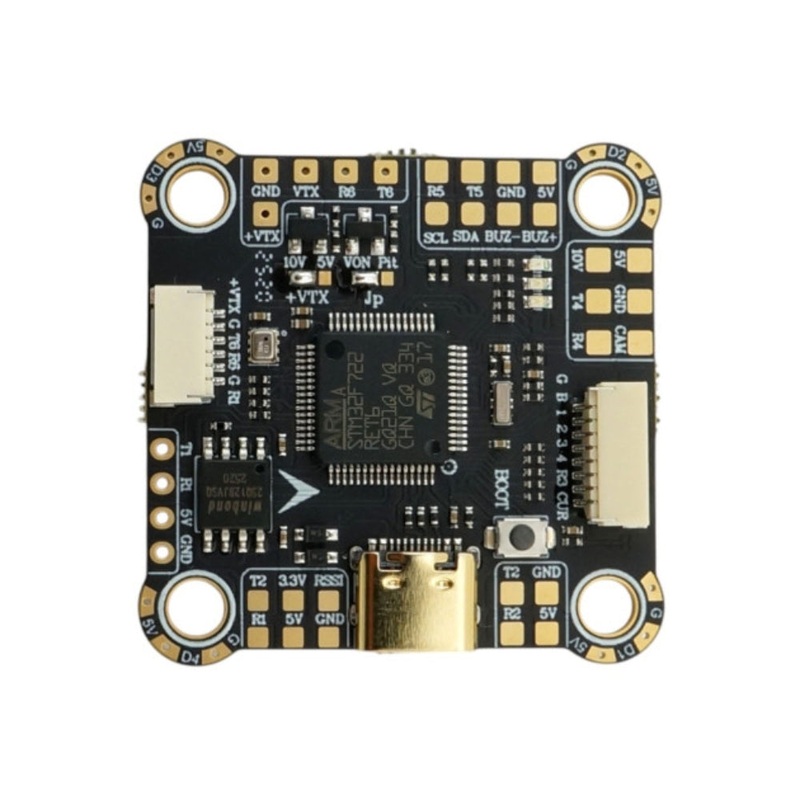

Skystars F7HD Pro5 Flight Controller

• MCU: STM32F722
• Gyroscope: ICM42688
• Baro:Bmp280
• OSD: Betaflight SPI OSD DJI HD OSD(UART6)
• Black box: 16MB
• 6x Uarts: UART 1/2/3/4/5/6
• 4x PWM outputs
• 1x I2C
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• USB Type-C(USB2.0)
• 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
• 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
• VTX 10V/Vbat filtered power ON/OFF switch
• DJI FPV OSD is supported by any spare UART
• LED: 4 LED independent pads, support WS2812 programming lamp output.
• Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

• Input voltage: 3-6S
• BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
• LDO 3.3V: Max.250mA

FC Firmware:

• BetaFlight firmware: SKYSTARSF722Pro
• INAV firmware:SKYSTARSF722HD

Mounting:

• Installation size: 30.5mm 30.5mm The installation hole is M4 and supports shock column installation
• External size 39mm 39mm
• Flight control weight: 6.9g
• Flight control onboard voltage sensor.

AM60A AM-32 32bit 4-in-1 ESC

• Support Dshot1200, Dshot600, PWM control signal
• Input voltage: 3-6S LiPo
• Con.Current: 60A
• Peak Current: 80A 10S
• Firmware: AM_32
• Support : Dshot 600/1200
• Mounting hole : 30.5mm/M3
• BEC: No
• Product size: 41*46*7.6mm
• Weight: 18g

Package Includes:

• 1 x SkyStars Fly Stack – F722 HD Pro 5 FC + AM60 60A AM_32 ESC – 30×30
• 8 x Silicon grommets M4 to M3
• 2 x JST-SH1.0_8pin cable, 4cm
• 1 x JST-GH-6P cable for DJI port, 10cm
