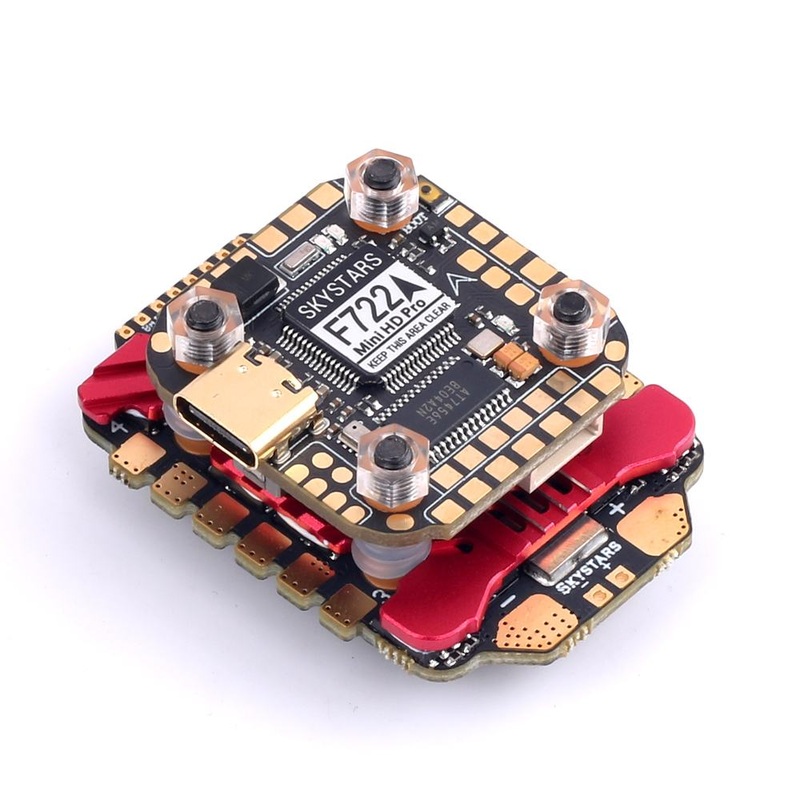

Skystars FlyStack F7 Mini HDPro Flight Controller + KM55 55A AM32 32Bit 3-6S 4-in-1 ESC – 20x20mm

Description

The SkyStars Fly Stack features an F722 Mini HD Pro Flight Controller and a Kramam 55A AM32 4-i-n1 ESC with a 20x20mm mounting pattern!

Check out all ourStacksand the rest of ourSkystars Products!

Features:

• Designed the LED installation position in the four corners,support WS2812 Programable LED.

• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire,) . Support 3.3V Satellite Receiver.

• High-performance / low-noise / high sensitivity IMU. BMI with 6-axis gyro and accelerometer.

• Support connect DJI HD air module.

• Input voltage 12V-26V (3-6S)

• TVS protect.

• Automatic voltage monitoring.

Specifications:

F722 Mini HD Pro FC

• F722FC

• MCU: STM32F722RGT6 216MHz

• IMU: BMI270 (SPI)

• OSD: Betaflight OSD & DJI HD OSD (UART6)

• 6 hardware UARTS (UART1,2,3,4,5,6)

• 5V 2A & 10V 2A

• Input Voltage: 3-6S Lipo

• Blackbox: 16MB

• Barometer: YES

• Firmware: SKYSTARS F7HD

• Dimensions: 35x28x7mm

• Mounting Holes: Standard 20mm/M3 square to center of holes

• Weight: 4.2g

KM55 55A AM32 4-in-1 ESC

• voltage: 3-6S LiPo

• Con.Current: 55A Peak

• Current: 70A 10S

• Firmware: AM_32

• Support : Dshot 600

• Mounting hole : 20X20 mm/M3

• BEC: No

• Product size: 35*47*6.5mm

• Weight: 16.5g

Package Includes:

• 1x Skystars Kramam 55A AM32 32Bit 3-6S 2020 4in1 ESC

• 1x Skystars F722 Mini HD Pro Flight Controller 2020mm
