SmartElex TB-03F Bluetooth Module for Smart Lighting

Description

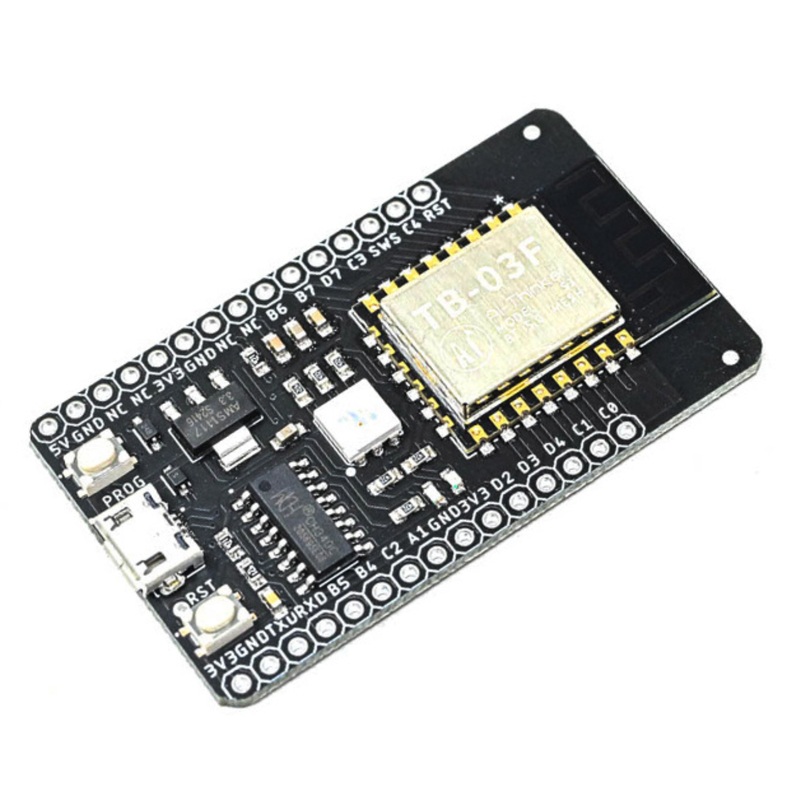

SmartElex TB-03F Bluetooth Module for Smart Lighting

The SmartElex TB-03F Bluetooth Module for Smart Lighting is a compact and efficient Bluetooth 5.0 Low Power Module built on the TLSR8253 chipset, specially designed for intelligent lighting control systems.

It conforms to BT 5.0 low power Tmall Genie Mesh standards, enabling direct control through Tmall Genie voice commands. Using star network communication and Bluetooth broadcast technology, this Bluetooth Module ensures quick and reliable response even when multiple lighting devices are connected.

With low power consumption, minimal latency, and stable short-range wireless communication, the TB-03F is an ideal solution for modern smart lighting and IoT-based automation applications.

Features:

• Tmall Elf can control it directly without using a gateway.
• SMD-22 Package
• Six PWM outputs.
• With on-board antenna, there is no need to create antenna.
• Brightness (duty cycle) adjustment range: 5%-100%.
• Factory preset 50% duty cycle for cool and warm hues.
• PWM output frequency: 1KHz.
• Supports numerous sleep modes, including deep sleep current as low as 0.4 uA.
• With a wall switch to switch color temperature.
• Support secondary development.
