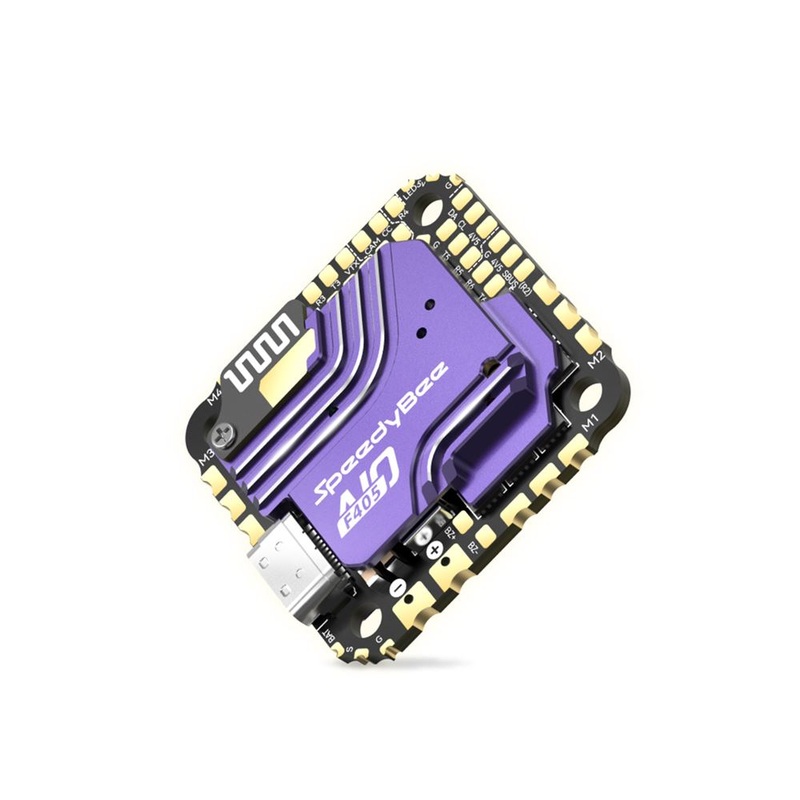

SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC – 25.5×25.5mm

Description

SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC – 25.5×25.5mm Boost your drone’s speed, stability, and control with the SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC. Designed to fit in small spaces with its compact 25.5×25.5mm size, this all-in-one product provides a seamless experience for pilots, making it a must-have for any drone enthusiast.

Check out all our Whoop Style AIO Flight Controllersand the rest of ourSpeedyBee Products!

Specifications:

Flight Controller

• Product Name SpeedyBee F405 AIO
• MCU STM32F405
• Gyro ICM-42688P
• USB Port Type Type-C
• Barometer SPA06-003
• OSD Supported
• Bluetooth BLE Supported, Bluetooth speed enhancement – 2.0
• Wireless Flight Controller Firmware Update Supported (no need to press
• physical BOOT button)
• Wireless Download & BlackBox Analysis Not supported
• DJI Air Unit Connection Method Supports both 6-pin direct insertion and soldering
• 6-pin DJI Sky Port Direct Insertion Supported, can directly connect to DJI O3/SpeedyBee Link/Caddx Vista without changing wire order
• Flash (for BlackBox) 8MB
• Betaflight CC Pads (Camera Parameter Adjustment) Supported
• Input Voltage 3S-6S LiPo battery
• 4V5 Output Two 4V5 outputs; total current 1A
• 5V BEC Output Three 5V outputs; total current 2A; shared with 4V5
• 9V BEC Output None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
• MOTOR M1-M4
• UART 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
• ESC Telemetry None
• I2C Supported
• LED Pads Supported, used to control WS2812 LED lights
• Buzzer Pads Supported, BZ+ and BZ- pads
• BOOT Button Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
• RSSI Pads None
• SmartPort Not supported
• Supported Flight Controller Firmware BetaFlight (Default), INAV
• Firmware Target Name SPEEDYBEE F405AIO
• Mounting 25.5 x 25.5mm, 3mm hole diameter
• Dimensions 33.0mm (length) x 33.0mm (width) x 8mm (height)
• Weight 13.6g (including CNC)

ESC

• Product Name SpeedyBee F405 AIO
• Input Voltage 3-6S LiPo battery
• Continuous Current 40A
• Burst Current 45A (10s)
• ESC Protocol Supports DSHOT600/300; other protocols may cause severe errors,
• please use with caution.
• Output Voltage VBAT battery voltage (used to power the flight controller)
• Current Sensor Supported (Scale = 254, Offset = 0)
• Firmware Bluejay JH-40 48kHz
