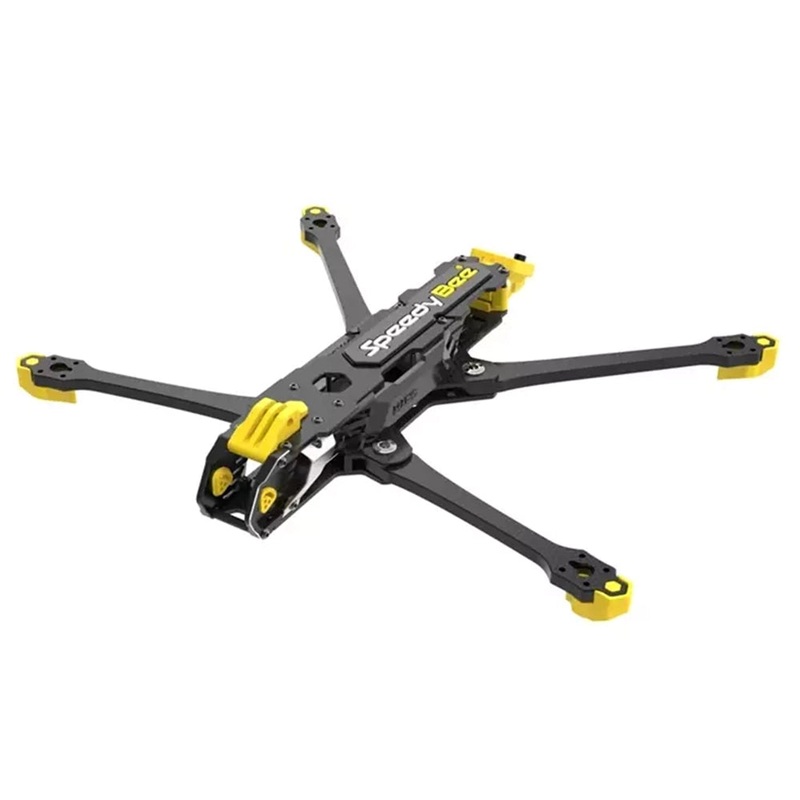

SpeedyBee Mario Fold 8 DC FPV Long Range Frame Kit

Description

The Mario Fold 8 could be one of the best thought-out and largest long-range FPV drone frames currently available, especially considering its size and build quality.

Designed for long-range FPV flying, the SpeedyBee Mario Fold 8 stands out for its extended flight range, stability, and portability. Its a foldable 8-inch drone.

You can find the related parts in SpeedyBee Mario Fold 8 DC FPV Long Range FrameCollection

Check out the rest of our8″ Framesand the rest of ourSpeedyBee Products!

Specifications:

• Product Name SpeedyBee Fold 8 DC Long Range Drone
• Wheelbase DC FLOD:360mm Front:305mm Rear:272mm
• Weight MARIO Fold 8 DC O3 Kit 695g
• Top plate thickness 2.5mm(T300 3K)
• Middle plate thickness 2.5mm(T300 3K)
• Bottom plate thickness 3mm(T300 3K)
• Arm thickness 7mm(T300 3K)
• Camera Screw 7mm
• 3D printed par Yellow TPU
• Stack side plate PC
• Battery Anti-skid Mat Silicone Resin
• Motor circlip spacing 9mm
• Propellers 7-8Inch
• Mounting holes for motors 19mm
• FC mounting hole 30.5×30.5(M3) & 20x20mm (M3)
• Drone head 7075 CNC aluminum alloy
• Aluminum standoff 7075 M3*22mm (5mm&4.6mm)
• Internal installation height 22-31mm
• Antenna Mounting SMA OR O3 Ant CNC GPS:25*25*8mm
• Other Features: Includes a battery anti-skid mat made of silicone resin and yellow TPU for 3D printed parts.

Download the Manual here

Package Includes:

• 1 x SpeedyBee Mario Fold 8 DC FPV Long Range Frame Kit
