Sale!
Sunnysky M4520R 840kV Motor – Short Shaft (Second Hand) : MHSH101
Original price was: $84.00.$42.00Current price is: $42.00.
Description

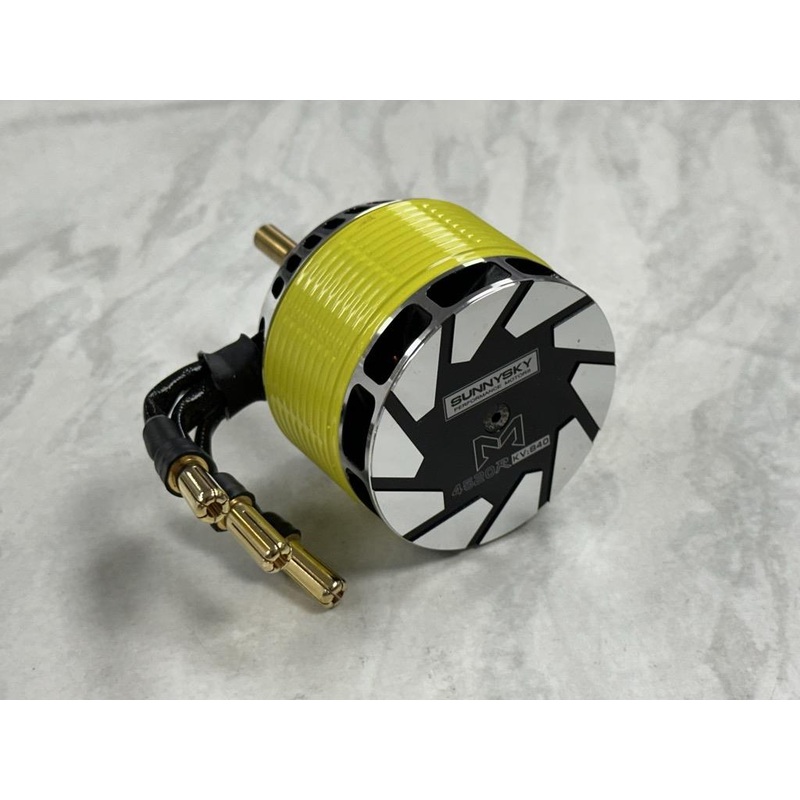

Second HandSunnysky M4520R 840kV Motor – Short Shaft
Excellent Condition
Racing Edition Performance motor for RC Helicopter
Specification
- Stator Diameter : 45.5mm
- Stator Thickness : 20mm
- No. of Stator Slots : 12N
- No. of Poles : 10P
- No-Load Current (A/10V) : 2.5A
- Motor Wind : 5+6 Turn Delta
- Motor Resistance : 11.3m
- Max Continuous Current : 90A
- Max Continuous Power : 4300W
- Motor Weight : 417g
- Outside Diameter : 56.3mm
- Shaft Diameter : 6mm
- Body Length : 47mm
- Overall Shaft Length : 36mm
- Mounting Hole and Screws : 30mm,4 x M4
- Max Lipo Cell : 12S
- Recommended ESC : 100-120A
- Recommended Helicopter Size : 520-600mm
