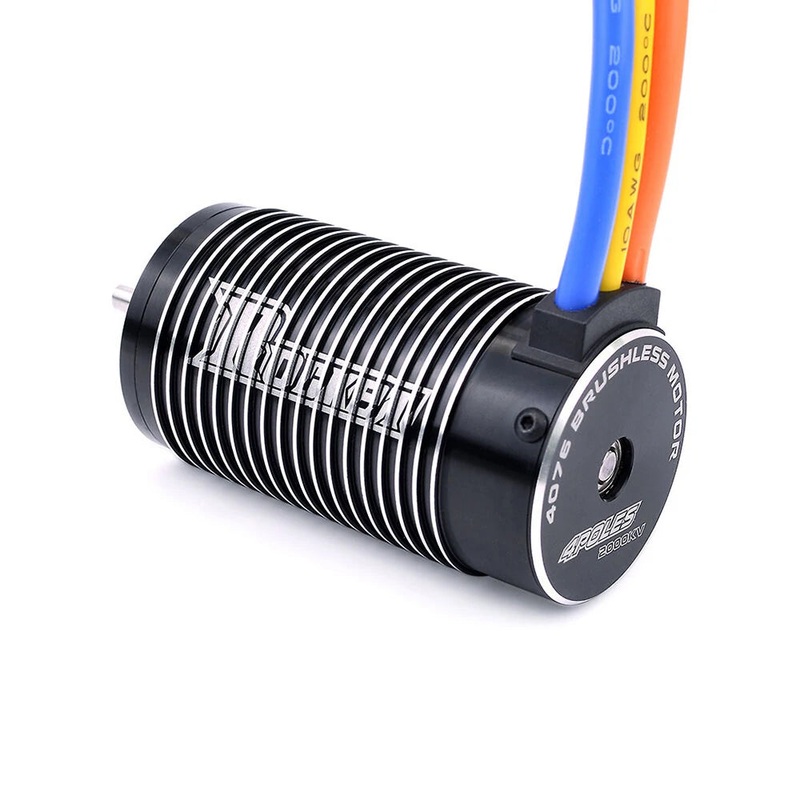

Surpass Hobby Rocket 4076 1700KV/2000KV/2250KV Brushless Motor for 1/8 RC Car Vehicles Model Parts

Description

Description:
Item Brand:Surpass Hobby
Item Number:4076
Item Name:RC car motor
Material:Metal and plastic
Color:Black
Product Size:Length 76mm,diameter 40mm,shaft diameter is 5mm,length of extended shaft is 18mm

Product Weight:About 400g
Fit For:1/8 brushless rc cars

Specification:
KV:2250
Watts:2800W
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000

Diameters:40/42mm with fins
Connector:6.5mm gold

KV:2000
Watts:2800W
Max Voltage:<21V
Max Amps:135A
Rotor Poles:4
IO:2.3A
Resistance:0.0079
Max RPM:50000

Diameters:40/42mm with fins
Connector:6.5mm gold

KV:1700
Watts:2800W
Max Voltage:<23V
Max Amps:116A
Rotor Poles:4
IO:1.9A
Resistance:0.0111
Max RPM:50000

Diameters:40/42mm with fins
Connector:6.5mm gold

Features:

4 Pole 12 Slot Hi-torque Motor DesignCNC Machined 6061 Billet Aluminum Heatsink CanHigh Purity Copper Windings Maximizes EfficiencyHigh RPM ABEC5 Oversized BearingsUniversal fit,fits all 1/8 brushless cars-multi-mounting system for M3 or M4 screwsPrecision balanced rotor,smoothness for best reliability and maximum RPMStator – Super Thin (0.2mm) LaminationsRemovable/Replaceable RotorPrecision Engineered for Maximum Energy ConversionROAR legal

Packageincluded:
1x Rocket 4076 1700KV/2000KV/2250KV Brushless Motor
