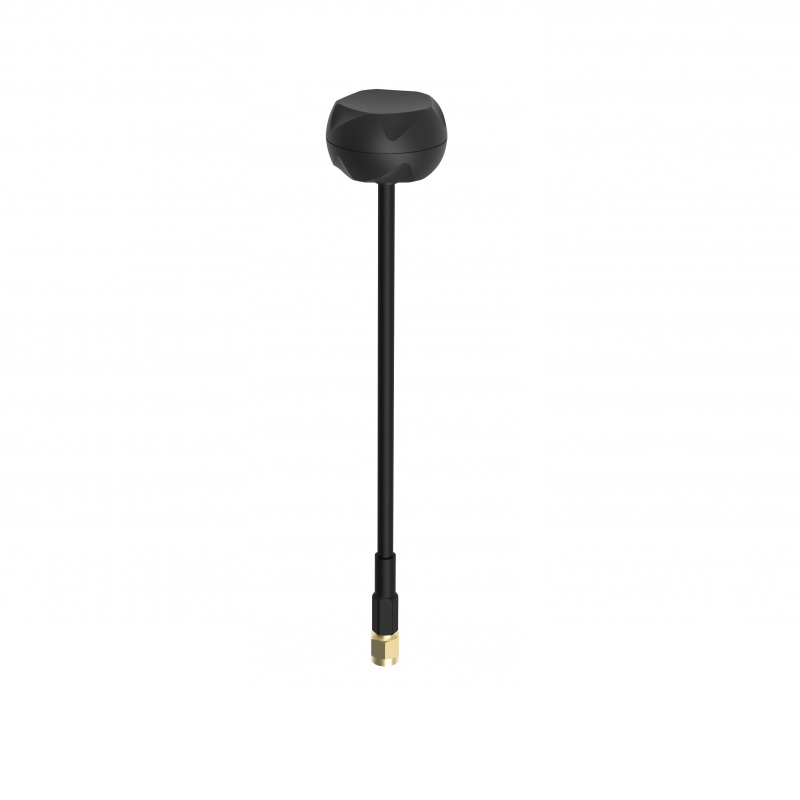

TBS Airscrew (RHCP SMA)

Description

The TBS Airscrew is a licensed interpretation of the VAS Airscrew and provides extremely wideband performance across the entire 5GHz band. Designed by IBCrazy and manufactured by TBS, the five multi-phase elements create a circular reception pattern that will reject cross-polarized signals, while tolerating an extremely wide frequency range.

With the long antenna connector, it is the ideal antenna for transmitting over large distances or for mounting the antennas on a TBS Fusion for great omni-directional reception.

The antenna comes in 3 connector flavors: MMCX, SMA 90 and SMA.

Check out the rest of our RHCP SMA Antennas!

Features:

• Manufactured and tested to highest standards
• Extremely wide band reception
• Lightweight design
• Ultrasonic welded plastic case for great crash-protection
• Double-jacket semi-rigid cable for heavy impact resistance

Technical Specifications:

• Frequency range: 4900-6100MHz
• Polarization:RHCP
• Gain:1.3dbic
• Axial Ratio:0.95
• Weight:20g
• Height:130mm
• Connector:SMA


Package contents:

• 1x TBS Airscrew SMA Antenna
