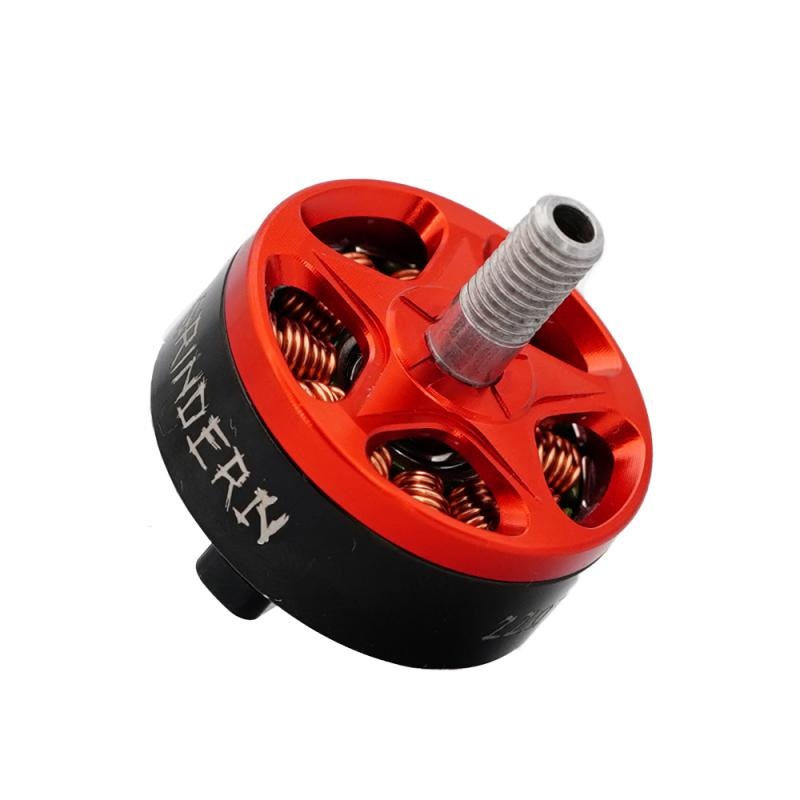

TBS Grinder V4 2207 1750KV Freestyle Motor

Description

The final form of the botgrinder motors are here! Introducing the v4 grinder motors! Redesigned with the ultimate durability in mind these new motors feature a new bearing reinforcement and a super thicc 4mm shaft to make these the strongest grinder motors yet!

Check out all our 22xx Motorsand the rest of ourTBS collection!

Specifications

• Stator Size (Diameter): 22mm*7mm
• Kv: 1750kv
• Magnets N52SH: Curved
• Windings: 10.5 turn DLRK
• Shaft Length (mm): 11.5mm
• Shaft Diameter (mm): 3mm
• Shaft material: Steel
• Bearing: NSK684
• Weight (With Wires) (g): 34.5g
• Cells (Lipo): 4S-6S
• Max Current (A): 45A
• Max Burst Current (A): 50A
• Internal Resistance (Rm): 50
• Wire Spec (AWG): 20#
• Base Mounting Pattern: 16x16mm
• Base Mounting Thread: M3 Thread
• Motor Overall Dimensions: 27.5mm*18.8mm

Package Includes:

1 xTBS Grinder V4 2207 1750KV Freestyle Motor
