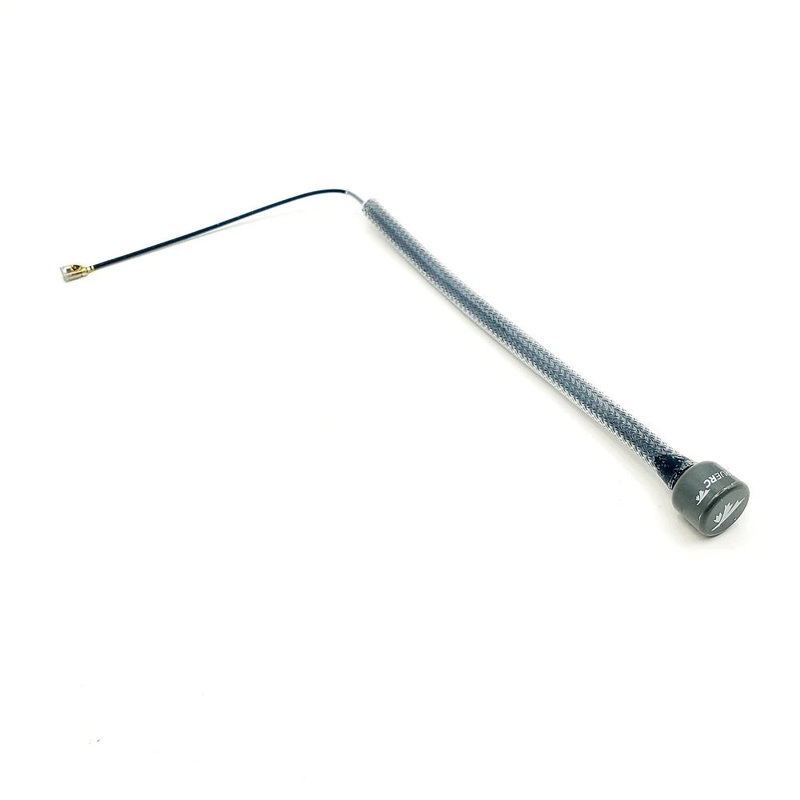

True RC SINGULARITY LHCP U.FL 5.8 Long with Tube 110mm

Description

Description

The singularity 5.8 is our most advanced antenna. We pushed miniaturization further than ever before, yet managed to push performances a notch higher still. It is the smallest and lightest 5.8GHz CP antenna ever made.

Specs:

• Gain: 1.9dbic
• Polarization: RHCP or LHCP
• Cross-Polar Rejection: -15 to -30dB (1.9%)/
• Bandwidth:5.6GHz-6.0GHz
• Radiation Efficiency: 99%
• SWR: <=1.5:1
• Weight: 1.03g to 3.55g depending on configuration
• Dimensions(head): 11.8mm dia. x 8.2mm height (PDF)
• Length: Vary with cable option
• Cable: RG405, RG178, 1.13mm
• Connector: True-SMA/90, MMCX/90, U.FL

Useful print!

• Rotor Riot HD1 mount
• iFlight Nazgul XL5V5 mount
• Lumenier QAV-S Mini Antenna Mount
• Carnage/Venom mount
• AlphaRC Fi-115 mount

US. Pat. 10,804,618
Can. Pat. 2968566
