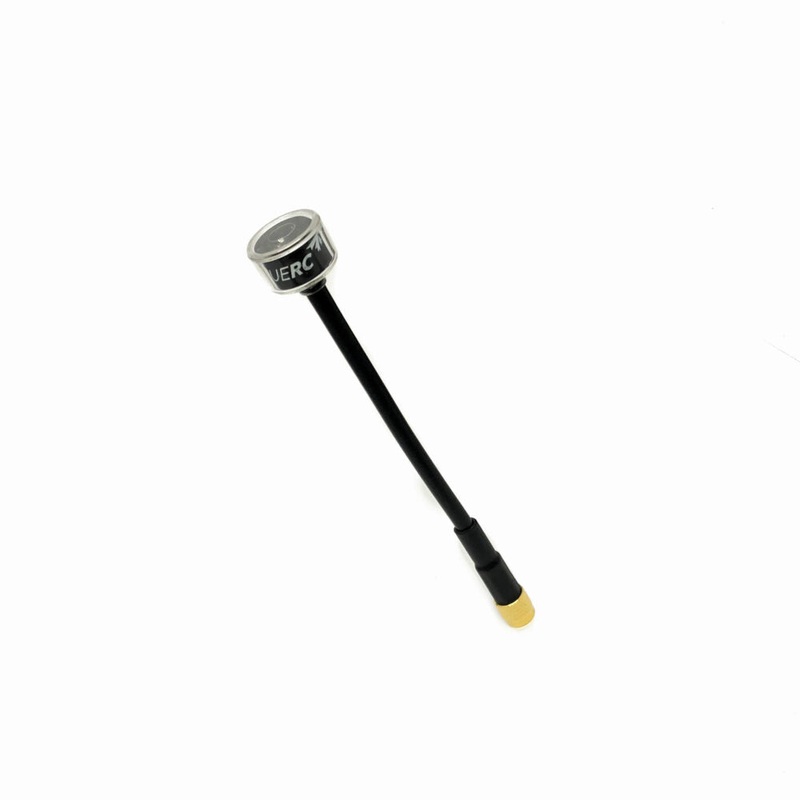

TrueRC OCP 5.8 (LHCP Long SMA 115mm)

Description

Description

The OCP 5.8 is our new everyday omni antenna. Proven design, great signal, durable and look amazing. Available in all popular connector configurations.

Features

• Durable poly-carbonate, Injection Moulded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflect impacts
• Knurled True-SMA for easy tightening
• Quality MMCX/90 that snap on DJI fpv securely

Specs:

• Gain:1.6dBic
• Polarization: LHCP
• Cross-Polar Rejection: -10 to -20dB, (3.2%)
• Bandwidth:5.6GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.5mm dia. x 10.7mm height.
• Length: Vary with cable option
• Cable: TrueRC RG316S/RG402/RG178 coax
• Connector: Reinforced True-SMA

Useful print!

• AFW Rapid mount
• Carnage/Venom mount

Includes

• 1x TrueRC OCP 5.8 SMA Long 115mm LHCP
