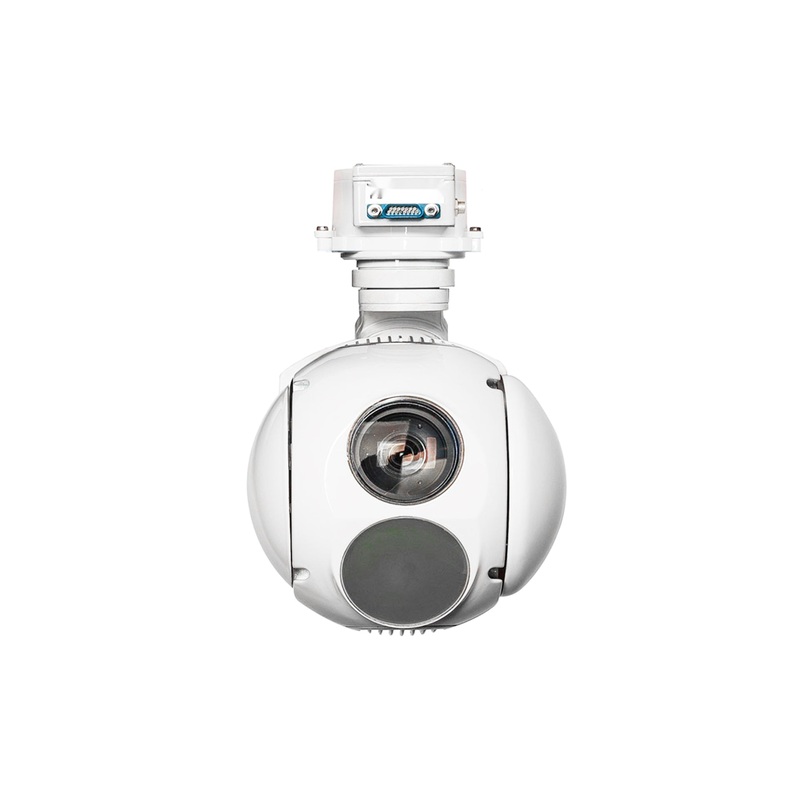

TS-01CT 30x Optical Zoom Bifocal Camera Triaxial With visible light Infrared

Description

System Specification

Stabilization: 200 rad(1) (2 / 1Hz, 1 / 2Hz swing

Weight: 860g

Size: 120mm 183mm

Environmental protection:IP64

Operating Temperature:-20~60

Rotation Limits:

Azimuth axis: n 360 continuous rotation

Pitch Axis: -110 ~+ 10 (0 horizontal, positive upward)

Horizontal roller: -40 ~+ 40

Slew Rate: 50 / s

Power:15W typical/ 30W peak

Voltage:10 V~ 14 V

Video out: Digital H.264 encoded video

Control interfaceRS422

Onboard Image Processor Specification

Object Tracking Yes

Scene Steering: yes

Software Stabilization: Yes

Software Roll Correction Yes

Video Output: HD-SDI,1080p,30Hz

H264.encoding: Yes

Geo-Location Feature: Yes

Moving Map Software: Yes

EO Sensor Specification

Field of View63.7 ~2.3

Resolution:1920×1080

Optical Zoom30x

Digital Zoom: 2x

IR Sensor Specification

Type: LWIR uncooled

Field of View:17.4 14

Resolution:640×512

Frame Rate:30fps

Focal length :25 mm/F1.0

Sensitivity:50mK
