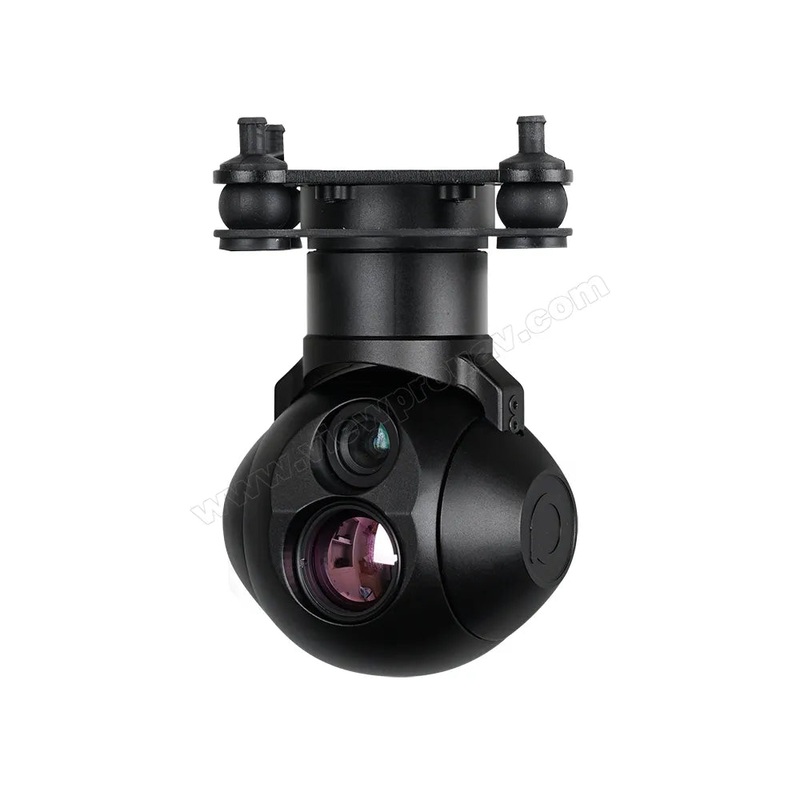

ViewPro Hawkeye U818 Drone Gimbal Camera – Micro Prime Lens Dual Sensor Tracking Camera for Surveillance

Description

Overview

The ViewPro Hawkeye U818 Drone Gimbal Camera is a high-performance dual-sensor camera designed for surveillance and tracking applications. It features a CMOS EO sensor with 1920×1080 resolution and an uncooled VOx thermal imager with 640×512 resolution, delivering unparalleled clarity and detail. With a detection range of up to 1000m for vehicles and 600m for thermal imaging, this camera supports precise observation. The 3-axis gimbal provides 0.02 vibration stability and a mechanical range of -55 to 130 for pitch, ensuring smooth and stable operation. Additionally, it supports multiple control methods, including TTL, S.BUS, and TCP/UDP, offering seamless integration with UAV systems for versatile use.

Key Features

Hardware Excellence:

• Wide Input Voltage Range: Operates at 12V with input support of 3S-6S (12V~25.2V).
• Efficient Power Consumption: Average power consumption is 7.2W, with a peak of 14.5W.
• High-Quality Output: Supports IP video streaming in RTSP/UDP (720p/1080p at 30fps) with H264/H265 encoding.
• Ample Storage: Local storage supports SD cards up to 512GB, enabling high-resolution JPG image storage (1920×1080) and MP4 video recording at 1080p 30fps.
• Robust Build: Operates reliably in harsh environments, with a working temperature range of -20C to +50C.

Precision Gimbal Specifications:

• Smooth Movement Range:
  • Pitch: -55 to 130
  • Roll: 70
  • Yaw: 150 / 360*N (IP output version).
• High Stability: Vibration angle precision of 0.02 ensures steady footage.
• One-Key Centering: Quick reset to neutral positions for convenience.

EO Camera Specifications:

• Superior Imaging: Equipped with a CMOS sensor offering 1920×1080 resolution.
• Impressive Range: Detects vehicles up to 1000m away and identifies human figures up to 400m.
• Enhanced Viewing: Features an 8mm focal length with a 38.3 x 22.1 field of view and defog capability.
• Digital Zoom: Supports zoom levels from 1x to 8x for detailed observations.

Thermal Imaging Specifications:

• Advanced Thermal Technology: Utilizes an uncooled VOx long-wave thermal imager (8m-14m) with a resolution of 640×512.
• Optimal Detection: Detects vehicles at 600m and human figures at 250m.
• Superior Clarity: NETD [email protected] ensures precise thermal readings.
• Customizable Imaging: Multiple color palettes (white hot, black hot, pseudo-color) and digital zoom (1x~8x).

Object Tracking:

• High Update Rate: Tracks objects with a deviation pixel update rate of 60Hz.
• Versatile Tracking Sizes: Handles objects from 16×16 pixels to 128×128 pixels.
• Memory and Speed: Can store object memory for 100 frames and track at speeds greater than 48 pixels/frame.

System Integration:

• On-Screen Display (OSD): Shows yaw/pitch angle, magnification, GPS data, altitude, and time.
• Geotagging: Embeds GPS coordinates and time in EXIF metadata.
• Seamless Protocol Support: Fully compatible with Mavlink (Ardupilot and PX4), including optional “Follow Me” mode.
• Video Options: Supports EO/IR video stitching with multiple output modes.

Specifications

Hardware Parameter U818
Working voltage	12V
Input voltage	3S ~ 6S(12V~25.2V)
Dynamic current	600~1200mA @ 12V
Power consumption	Average 7.2W, Max 14.5W
Working environment temp.	-20~ +50
Output	IP (RTSP/UDP 720p/1080p 30fps H264/H265)
Local-storage	SD card (Up to 512G,class 10, FAT32 format)
Picture storage format in TF card	JPG(1920*1080)
Video storage format in TF card	MP4(1080P 30fps)
Control method	TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP
Gimbal Spec
Mechanical Range	Pitch/Tilt: -55130, Roll: 70, Yaw/Pan: 150 / 360*N (IP output version)
Controllable Range	Pitch/Tilt: -45125, Yaw/Pan: 145 / 360*N (IP output version)
Vibration angle	Pitch/Roll/Yaw: 0.02
One-key to center
EO Camera Spec
Imager Sensor	CMOS Sensor
Resolution	1920*1080
Focus Length	8mm
Angle of View	38.3*22.1
Detective Distance (Car: 4.2×1.8m)	1000m
Recognize Distance (Man: 1.8×0.5m)	400m
Digital zoom	1x ~ 8x
Defog	Yes
IR Thermal Imager Spec
Focus Length	18mm
Horizontal FOV	24
Vertical FOV	18.1
Working mode	Uncooled VOx long wave (8m~14m) thermal imager
Detector pixel	640*512
Pixel size	12m
Focusing method	Athermal prime lens
NETD	[email protected] @25
Color palette	White hot, black hote, pseudo color
Digital zoom	1x ~ 8x
Detective Distance (Car: 4.2×1.8m)	600m
Recognize Distance (Man: 1.8×0.5m)	250m
EO / IR Camera Object Tracking
Update rate of deviation pixel	60Hz
Minimum object contrast	5%
Minimum object size	16*16 pixel
Maximum object size	128*128 pixel
Tracking speed	48 pixel/frame
Object memory time	100 frames
Features
OSD	Display the gimbals yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time
Geotagging	Display time and GPS coordinate in picture exif
Card reading online	HTTP read pictures or videos
KLV (UDP) (optional)	Card recording or Viewlink video playback
ArduPilot / PX4	Support(Mavlink protocol ) Optional: Support Ardupilot Follow me feature
Video stitching	EO+IR /IR+EO /EO /IR
Dual video stream output	Not support(EO and IR two stream output)
Packing Information
N.W.	31010g (with damping system)
Product meas.	92.3*68.1*112.9mm
Accessories	1pc gimbal camera device, screws, dampers, Connecting line, UART and power connector, Ethernet cable, USB to TTL cable / Hight quality box with foam cushion
G.W.	720g
Package meas.	200*200*150mm

Applications

• Surveillance: Ideal for public safety, border patrol, and facility monitoring.
• Search and Rescue: Thermal imaging supports nighttime and challenging conditions.
• Industrial Inspections: Suitable for inspecting pipelines, powerlines, and structures.

The ViewPro Hawkeye U818 Drone Gimbal Camera combines advanced EO and IR sensors with precision gimbal control, making it the ultimate choice for professional-grade surveillance, tracking, and industrial applications.

ViewPro Hawkeye U818 drone gimbal offers micro prime lens, dual sensor tracking camera, suitable for surveillance and aerial photography applications, with precise stabilization and reliable performance.

The ViewPro Hawkeye U818 Drone Gimbal features a dual sensor, triple sensor, and supports 1920×1080 resolution at 30fps or 3fps. It has a 18mm lens with a 640×512 CMOS sensor and also includes thermal imaging with 12um pixel size. Additionally, it equipped with a 12um thermal sensor and a laser rangefinder.

ViewPro Hawkeye U818 Drone Gimbal features a zoom capability with 640×512 resolution, 3.68MP, and 4x thermal resolution. It has an effective pixel count of IR digital zoom and a 18mm lens with 12m pixel pitch. The camera also boasts a 1200M range and a 510x300mm frame rate.

Compact structure, small volume, lightweight. Suitable for small UAVs like U818 with a weight of 310g or U818M with a weight of 3.45 pounds.

The ViewPro Hawkeye U818 Drone Gimbal features a CNC-machined aluminum alloy housing with improved metal texture, enhanced protection strength, and better heat dissipation.

Customized brushless motor provides fast speed and excellent stability for smooth footage.

The ViewPro Hawkeye U818 Drone Gimbal features a prime lens for FULL HD and is widely used in surveillance applications, including large area reconnaissance. It supports 1080p at 30FPS.

The ViewPro Hawkeye U818 Drone Gimbal features a laser range finder with accuracy up to 1200 meters, and an impressive precision of <400m +1mm horizontally, and >400m +0.4% vertically.

ViewPro Hawkeye U818 Drone Gimbal features a 510*300 angle of view, perfect for capturing stunning aerial footage. Compatible with U818 and U818M drones.

ViewPro Hawkeye U818 Drone Gimbal features a thermal camera with an 18mm lens, capable of capturing high-resolution images at 640×512 pixels. The gimbal offers white-hot and pseudo-hot IR thermal imaging modes, along with a thermal resolution of 50MK and sensitivity of 12uum. It also boasts a 60Hz thermal frame rate and update rate. Additionally, the U818M includes multiple thermal imaging modes, including pseudo-color patterns for enhanced visualization. Other features include electronic image stabilization (EIS), 4x digital zoom, and a compact design.

The ViewPro Hawkeye U818 Drone Gimbal supports various functions including Mavlink compatibility and KLV metadata provision. It also works with Viewlink, Vstation, MissionPlanner, QGC, and SmartAP for video stream output.

The ViewPro Hawkeye U818 Drone Gimbal features a video output with control methods including IP (RTSP, RTMP, UDP), UART/S.BUS, and TCP/UDP.

ViewPro Hawkeye U818 Drone Gimbal with TTLIS BUS Control, Power Cable, Ethernet, Micro-USB and Loupe View.

ViewPro Hawkeye U818 Drone Gimbal provides advanced stabilization for seamless aerial surveillance experience

ViewPro Hawkeye U818 Drone Gimbal, dimensions: approximately 4.99 inches x 2.63 inches x 2.44 inches (127mm x 67mm x 62mm).

ViewPro Hawkeye U818 Drone Gimbal: Compact and lightweight, this gimbal features a standard dimension of 106.7mm (length) x 81mm (width) x 62.9mm (height). Perfect for aerial photography and videography, it provides smooth stabilization for your drone camera.

The ViewPro Hawkeye U818 drone gimbal offers a high-quality image stabilization system for smooth and clear video recording.

Standard Version U818 Hawkeye Drone Gimbal. Includes: U818, Pelican Case, 326 micro-SD Card, Damping Ball, <2" screws x2, J30-15TJ Copper Cylinder x4 and ViewPro Hawkeye Accessories.

Standard Version U818M U818M Pelican Case includes 326 micro-SD Card, Damping ball x4, 2 x1, 70) 8 M2 Screw x2, J30-15TJ x1, Copper Cylinder x4, and Veb Mewprouar IP PCOU.
