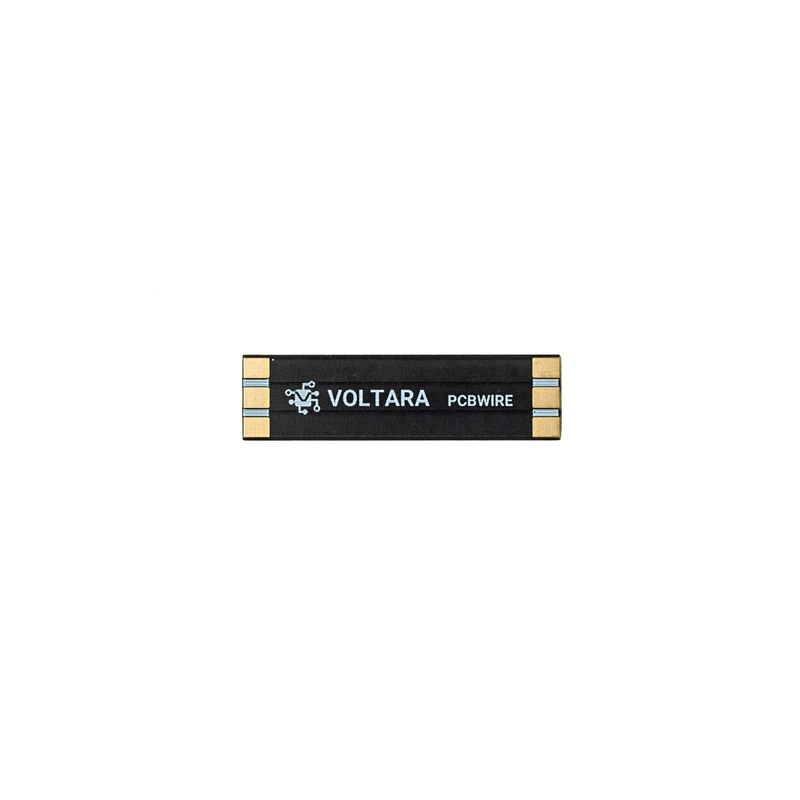

Voltara PCBWire

Description

Voltara PCBWIREis a printed circuit board designed to be installed on a quadcopter arm, replacing the traditional three motor wires. It offers two key benefits:protection from propeller strikesandeasier motor replacement.

Specifications:

• Dimensions:9.5mm x 35mm, 1mm Thickness
• Structure:4 layers of thick copper (minimizing heat buildup)
• Finish:Gold-plated PCB
• Quality:High-quality materials and construction

Installation:

Voltara PCBWIRE comes as a set of four boards, connected together on a single PCB. This is standard in PCB manufacturing and uses a technique calledV-scoring, which creates breakable tabs between each board. To separate them, simply snap each board along the V-scored lines. After breaking them apart, you may notice fine fiberglass strands at the edges. While you can lightly smooth these with an X-acto knife or small file for a cleaner look, this step is optional.

For installation on the quadcopter arm, it is essential to isolate the PCBWIRE from the carbon fiber. The best approach is to use a thin layer of double-sided tape applied to the back of the PCBWIRE, which you can then press onto the arm for a secure fit. Once attached, solder your motor wires to the PCBWIRE, and your installation is complete.
