Description

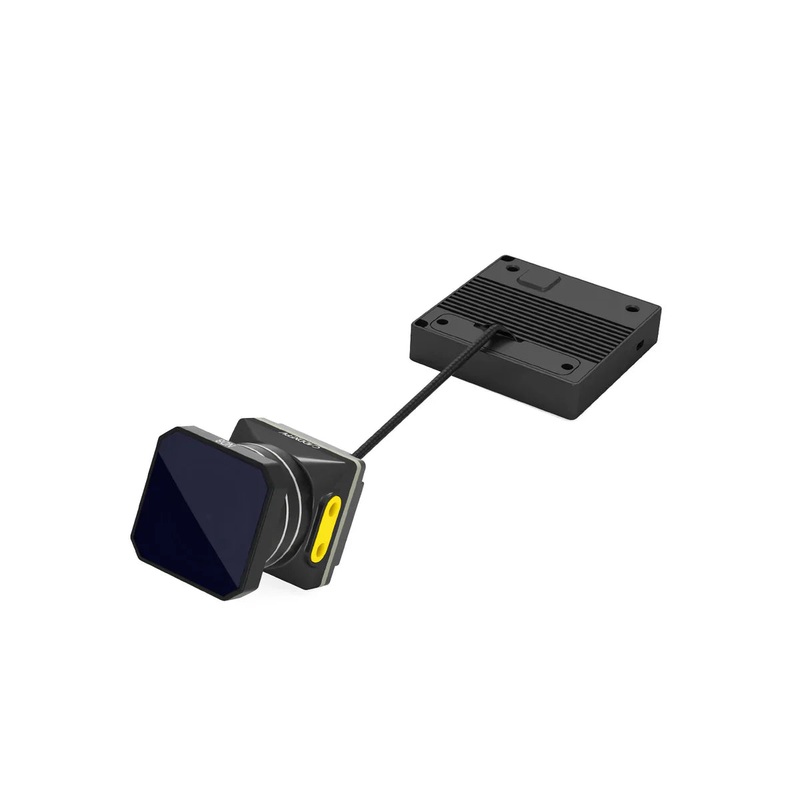

Walksnail Moonlight kit

features

4k/60FPS	Startlight Camera
Built-in EIS	Support Gyroflow
Sd card	FOV 160
Dual Antennas	7.4V-25.2V

Bullet Points:

• Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

• Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

• Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.

• Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

• Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

• The moonlight camera has a 160 FOV, providing you with a more natural and real picture for the ultimate flying experience.

• Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 15 working days.

Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera

Specification
Model	Moonlightkit
Firmware name	AvatarMoonlight_Sky_X.X.X
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface	JST1.0*4(Power in)JST0.8*6(USB)Micro SD card SlotIPEX-1
Sensor	Starlight sensor
FOV	Max 160
Aperture	F2.1
Shutter	Rolling shutter
ISO	100-25600
Recording resolution	4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps	150Mbps
Video format	MP4 (H.264)
3D DNR	Support
Gyroflow	Support
Built-in EIS	Support
Wide Power Input	7.4V-25.2V
Power consumption	[email protected], [email protected]
Memory card type	U3 MicroSD, Max 256G
Camera size	19.6mm*19mm*24mm
VTX size	15.3mm*34.5mm*34.5mm
VTX Installation hole distance	20*20mm/25*25mm (M2)
Weight	38.5g(Antenna not included)
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	2 (IPEX)
VTX Antenna
model	avatar V2 antenna
Polarization	LHCP
Frequency range	5600MHz-6000MHz
Average Gain	1.9dBi
VSWR	1.5
Input Impedance	50
Interface	IPEX-1
Dimension	R15 X 45mm without cable
Weight	2g

Packing List

1 x Walksnail Moonlight kit
8 x M2*4mm round head screws
4 x M2*5mm round head screws
4 x M2*6mm round head screws
1 x Double head 0.8mm*6PIN (4 wires)
1 x 4PIN silicone cable
1 x Quick Start Guide
