X Plus 8 Expansion Module

Description

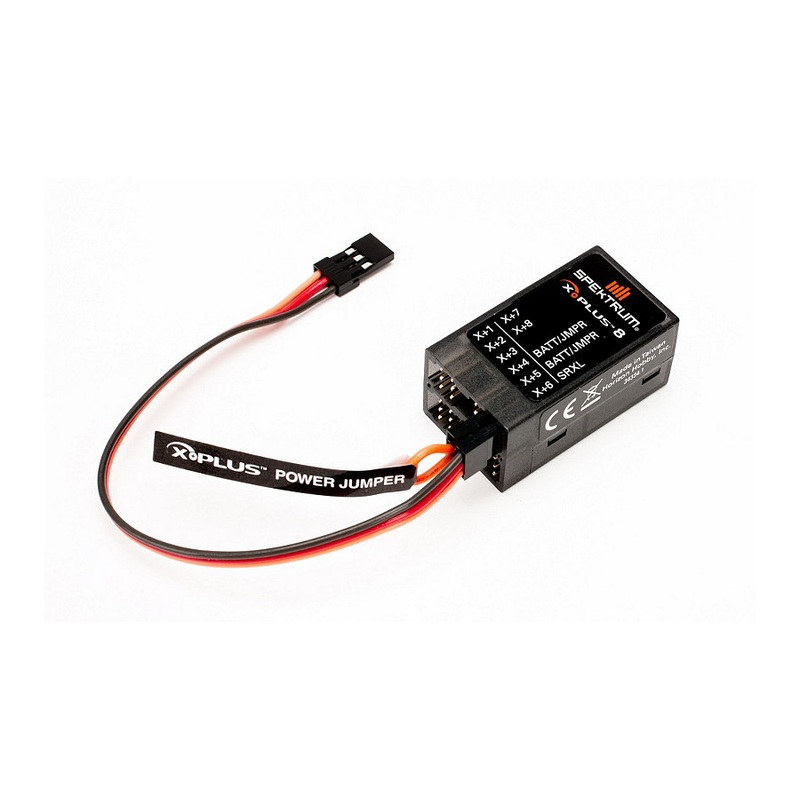

X-Plus8 Expansion Module

Key Features:

• 8-channel expansion
• Dual battery ports
• Included Jumper offers option of using receiver power
• Allows fine tuning of 8 servos on non-critical controls (bomb drops, lights, winches, gear, etc.)

Overview:
The X-Plus 8 module is designed to allow expansion of up to 8 servos for non-control surface functions such as bomb drops, lights, winches, retractable landing gear, and many more. The X-Plus 8 is compatible with Spektrum X-Plus transmitters and receivers.

The X-Plus 8 module offers the option to power the connected servos via dual auxiliary battery ports with separate batteries and switch harnesses (sold separately) independent of the receiver. The X-Plus 8 module can also be powered inclusive of the receiver by using the included jumper through either of the dual BATT/JMPR ports.

Applications:
Scale modelers with complex aircraft, ships, or surface applications will enjoy the easy programming and functions of the X-Plus 8 module using X-Plus compatible transmitters AirWare software.

Modelers will be able to select 2 position, 3 position or potentiometer adjustment through their X-Plus transmitter. After selecting the specific switch or port, AirWare software will allow the individual servo adjustment of each X-Plus channels travel adjust, sub trim, reversing, and speed.
