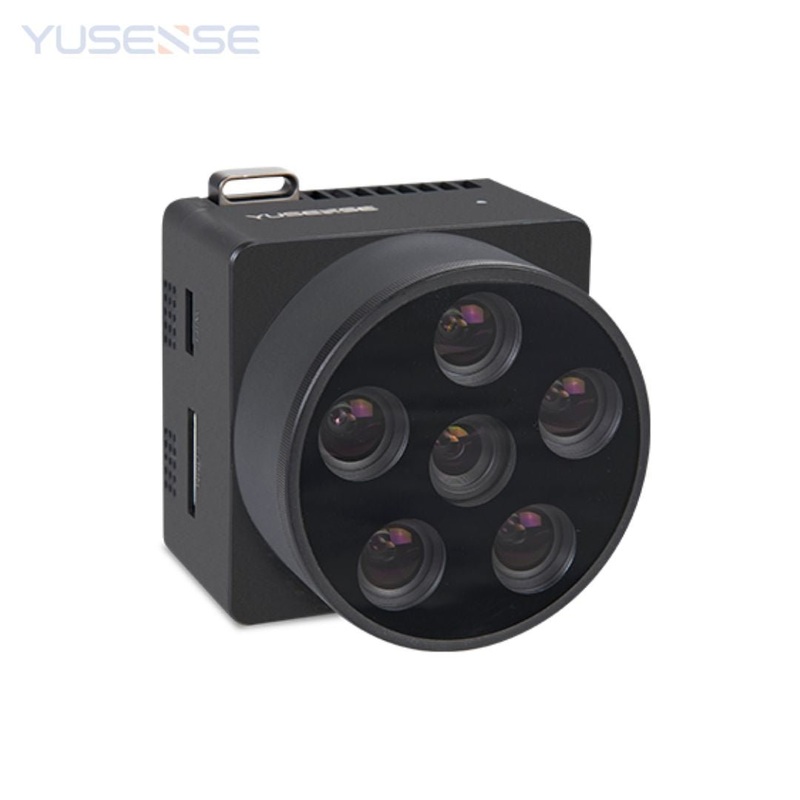

Yusense AQ600 - 5 Band Multispectral (Video) Payload

Yusense AQ600 – 5 Band Multispectral (Video) Payload

Original price was: $10.00.Current price is: $6.00.

SKU: F231444556 Category:

Description

The Yusense AQ600 is a multispectral drone payload that can provide video output as well and is compatible with various multi-rotor and fixed-wing UAVs. This lightweight payload is made of aluminium alloy and is equipped with five multispectral channels of 3.2 MP, one RGB channel of 12.3 MP, and sapphire optical glass windows.

The Yusense AQ600 is a highly useful and versatile payload that can be used for agricultural growth assessment, forestry monitoring, water body eutrophication monitoring, river and lake ecology, monitoring black and odorous water bodies, target recognition, and many other industrial uses.

Specifications

Product Details

Combination Method:

 5 Multispectral Channels + 1 RGB Channel

Target Size:

 Multispectral 1/1.8
RGB 1/2.3

Effective Pixels:

 Multispectral 3.2Mpx
RGB 12.3Mpx

Shutter Type:

 Multispectral Global
RGB Rolling Shutter

No. of Quantization Bits:

 Multispectral 12bit
RGB 8bit

Field Of View (FOV):

 Multispectral 48.837.5
RGB 47.436.4

Ground Resolution:

 Multispectral 5.28cm@h120m
RGB 2.60cm@h120m

Coverage Width:

 Multispectral 109m82m@h120m
RGB 106m79m@h120m

Spectral Channel:

 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB

Optical Window:

 Sapphire Optical Glass Window

Host Size:

 80mm80mm78mm

Host Weight:

 415g

Installation Interface:

 8M3

Powered by:

 12V (please contact us for power supply with other voltages)

Power Consumption:

 16W@12V

Image Format:

 Multispectral 16bit original TIFF & 8bit reflectance JPEG
RGB 8bit JPEG (including GPS, ambient light information)

Video Format:

 MP4

Storage Media:

 Standard configuration 128GB, supports up to 2TB USB3.1 storage device

Processing Software:

 Yusense Map/Yusense Map Plus

Parameter Settings:

 Wi-Fi (WEB interface access) / Ethernet / UART

Shooting Trigger:

 External trigger, timing trigger, overlap rate trigger, cascade trigger

Shooting Frequency:

 Photo mode 1Hz (related to the actual reading and writing speed of the storage medium)
Video mode 20Hz

Environment Humidity:

 RH(%) 85%(non-condensation)

Certified Product:

 CE, FCC, RoHS

Key Features

Gigabit network port/TTL serial port
Simultaneous imaging of all channels in the fastest 1s
On-board real-time spectral inversion, video output
Standard Downlink Light Sensor (DLS)
Compatible with multiple types of rotor and fixed-wing UAV platforms | Carrying platform: Small multi-rotor UAV or Fixed wing UAV
