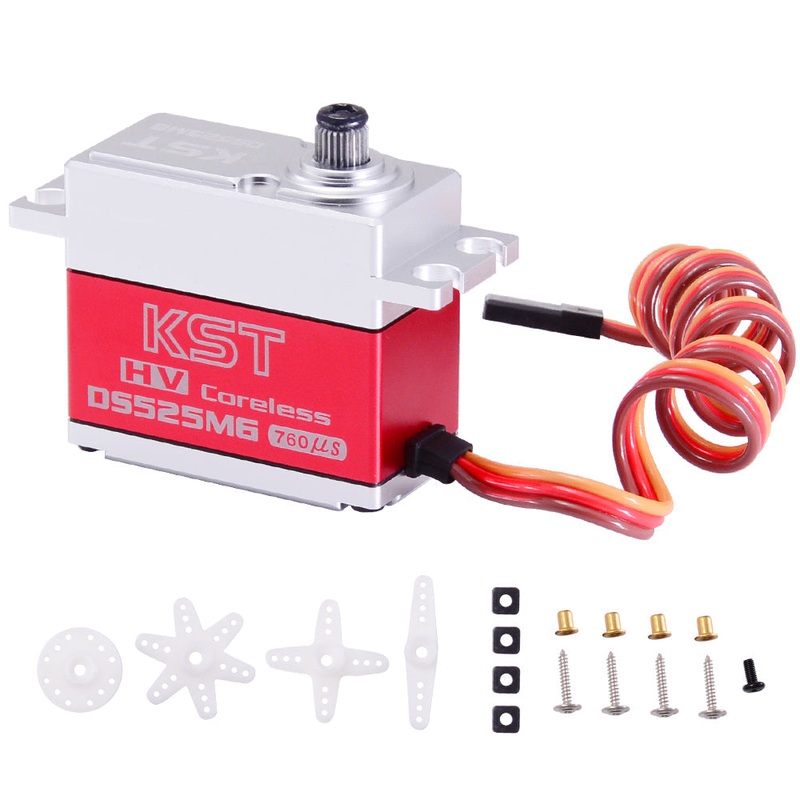

DS525MG 8.4V HV Digital Metal Gear Servo 7.5Kgf.cm 0.04sec for 550-700 Class Helicopters

Description

DS525MG features with 0.04sec extremely fast speed and robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopter tail rotors in the 550-700 class.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings

Specification

• Item:DS525MGMetal Gear Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque:
  [email protected]
  [email protected]
  [email protected]

• Speed:
  0.040sec/[email protected]
  0.045sec/[email protected]
  0.050sec/[email protected]
• Working Frequency: 760s/560Hz
• Temperature Range: -10+65
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Case Dimensions: 40.5mm*20mm*38mm0.2mm
• Weight: 70g10%
• Ball Bearing: 2 BB

Size

PackageIncluding

• 1 * DS525MG Metal Gear Servo Motor
• 1 * Pack of Accessories

Download

• DS525MG Servo Technical Specification
