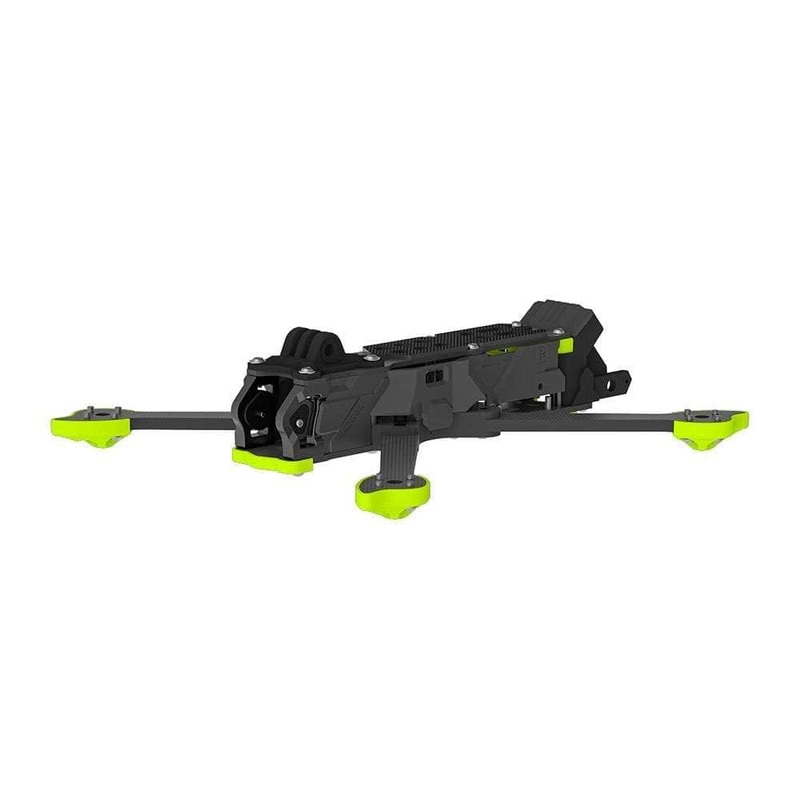

iFlight Nazgul XL5 Frame Kit

Description

The iFlight Nazgul XL5 Frame Kit is ready for a custom build. From a long line of tested BNF drones, the Nazgul XL5 is a durable frame just waiting for your favorite electronics. It supports 5″ and 5.1″ propellers, DJI O3 HD systems, and features 5mm arms, True-X geometry, and easy-swap design for reliability and agility.

Check out ouriFlightselection,as well as all our other5″ frames.

Features

• DJI O3 HD System Compatibility
• 5-inch Propeller Compatibility
• Versatile Stack Mounting
• LED-Illuminated Logo
• TPU Crash Guards
• True-X Geometry
• Easy-Swap Arms
• Durable Design

Changelog:

• December 13, 2022: New silicone inserts have been designed to replace the TPU ones, which are holding the 03 cam in the side panels.
• June 14, 2024: Nazgul5 V3 Frame kit is renamed Nazgul XL5 Frame Kit.
• July 15, 2024: Battery Plug mount updated to a fixed form. The frame kit was upgraded to V1.1.

Specifications

• VTX Mounting: 30.5 30.5 3mm / 25 25 1.6mm / 20 20 2mm
• Frame Dimensions: L173 W173 H34 mm
• Weight: 233g (excluding TPU parts)
• Bottom Plate Thickness: 2.5mm
• Max Flight Stack Height: 22mm
• Motor Mounting: 16 16mm
• Upper Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Max VTX Height: 29mm
• Arm Thickness: 5mm
• Wheelbase: 245mm
• Geometry: True-X

Includes

• 1x iFlight Nazgul XL5 Frame Kit
• 2x Battery Straps
• 1x Hardware Set
• 2x Battery Pad
