KST X20 HLS Combo 3x X20-2208 HLS V8.0/1x X20-1035 HLS V3.0 : KST-0422

Description

KST X20 HLS Combo 3x X20-2208 HLS V8.0/1x X20-1035 HLS V3.0 : KST-0422

Use the full power and precision of your helicopter with the KST X20 HLS Combo – the perfect solution for 3D flying and the F3N and F3C competition classes! This servo combination offers outstanding speed, extreme actuation force and unparalleled reliability, specially developed for the most demanding manoeuvres. Whether aggressive 3D aerobatics or precise flying in competitions – the KST KST X20 HLS Combo guarantees you unwavering control and lightning-fast reactions. Take your helicopter performance to the next level and dominate the skies with the KSTKST X20 HLS Combo.

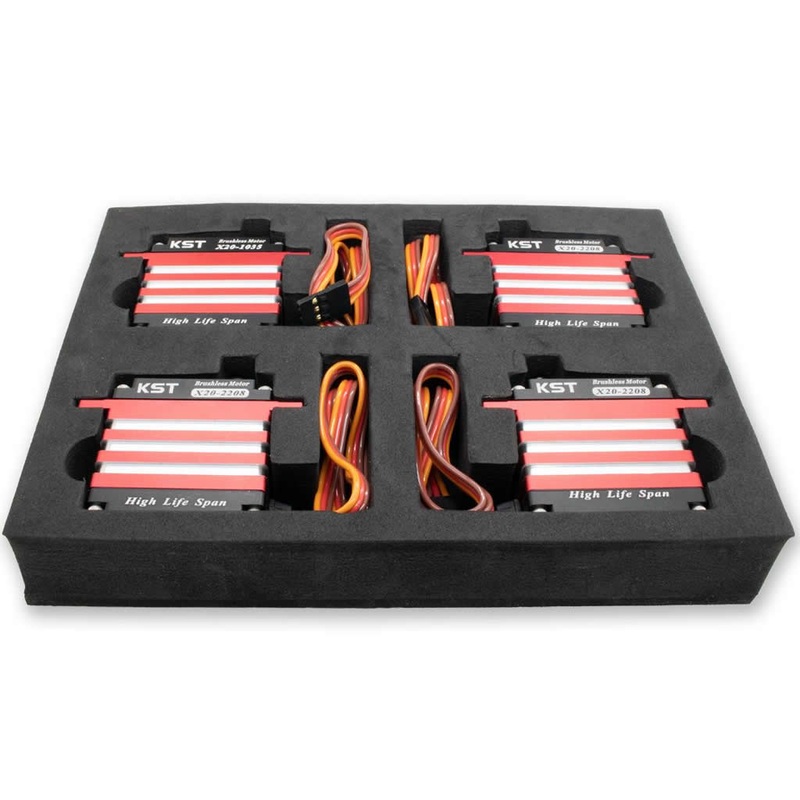

In the Box

• 3x KST X20-2208 V8.0 HLS 1520us swashplate servo/Programmable with KST Tool #3 and KST Tool #5.

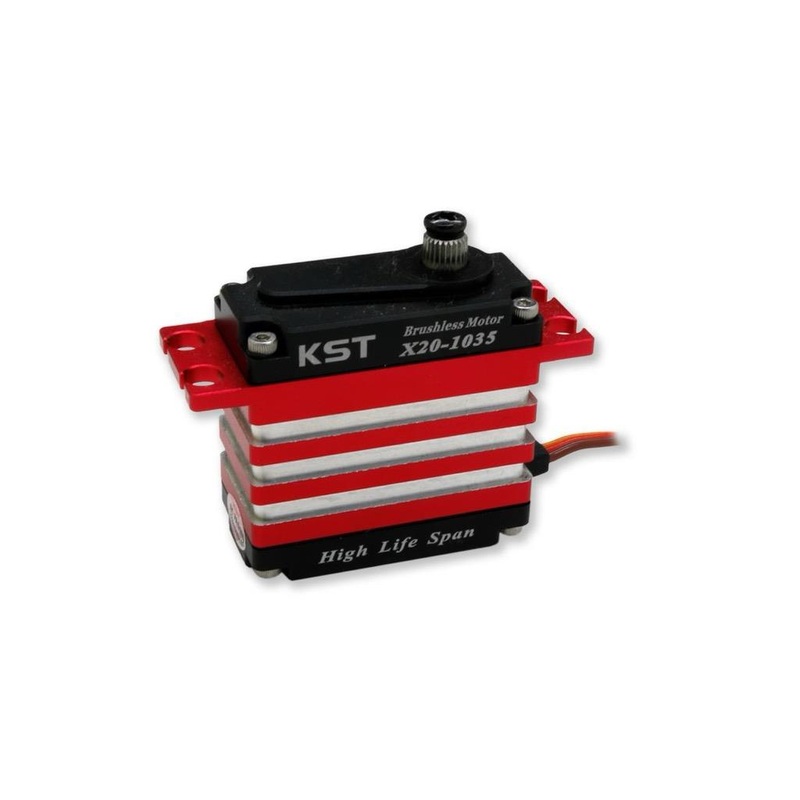

• 1x KST X20-1035 V3.0 HLS 760us tail servo/Programmable with KST-Tool #3

Features:

• Brushless motor
• Extreme actuating force with fast actuation time
• Gear made of hardened steel
• 6-fold ball bearings
• Ideal for 500 – 800 helis

Technical details of the swashplate servos X20-2208 V8.0 HLS:

• Operating voltage [V]: 6.0 – 8.4
• Torque [kgf.cm] @ 6.0V: 18.4
• Torque [kgf.cm] @ 7.4V: 22.4
• Torque [kgf.cm] @ 8.4V: 25.5
• Actuation time [s/60] @ 6.0V: 0.09
• Actuation time [s/60] @ 7.4V: 0.08
• Actuation time [s/60] @ 8.4V: 0.07
• Width [mm]: 20.0
• Length [mm]: 40.0
• Height [mm]: 40.0
• Weight [g]: 72.0
• Motor type: Brushless
• Frequency range: 1520us/333Hz, 1000us-2000us
• Gear type: Steel
• Bearing type: 6BB / HLS
• Toothing: 25T-6
• Servo type: Standard
• Electronics: Digital
• Position sensor: Potentiometer
• Waterproof: No
• Soft start: Programmable
• Programmable: Yes
• Manufacturer: KST

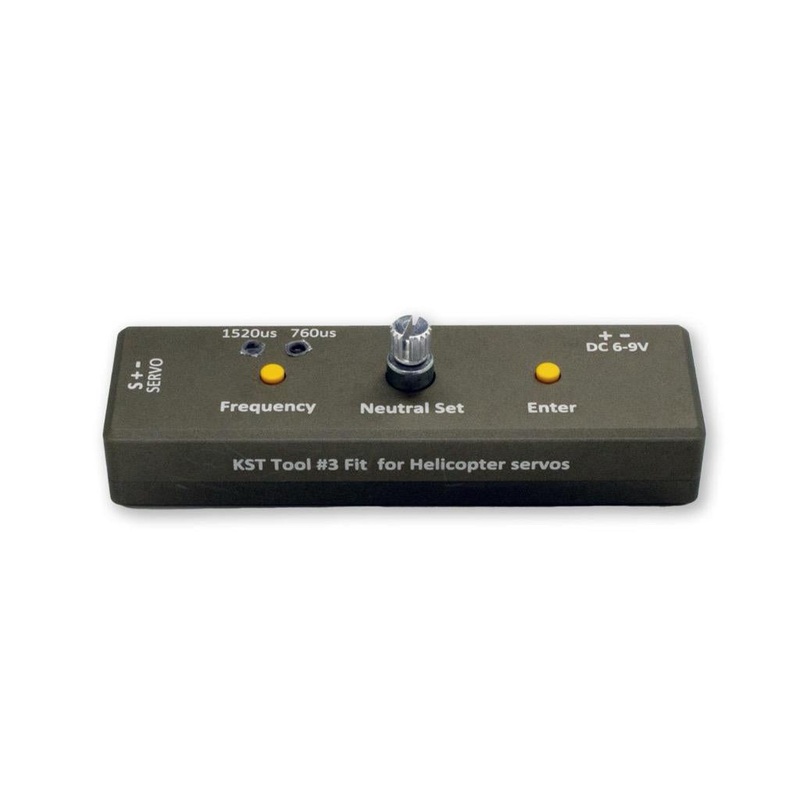

• Programmable with KST-Tool #3 and KST-Tool #5.

Technical details tail servo X20-1035 V3.0 HLS:

• Operating voltage [V]: 6.0 – 8.4
• Torque [kgf.cm] @ 6.0V: 9.2
• Torque [kgf.cm] @ 7.4V: 11.2
• Torque [kgf.cm] @ 8.4V: 12.2
• Actuating time [s/60] @ 6.0V: 0.040
• Actuating time [s/60] @ 7.4V: 0.035
• Actuating time [s/60] @ 8.4V: 0.030
• Width [mm]: 20.0
• Length [mm]: 40.0
• Height [mm]: 40.0
• Weight [g]: 72.0
• Motor type: Brushless
• Frequency range: 760us/560Hz, 450us-1050us
• Gear type: Steel
• Bearing type: 6BB / HLS
• Gearing: 25T-6
• Servo type: Standard
• Electronics: Digital
• Position sensor: Potentiometer
• Waterproof: No
• Soft start: Programmable
• Programmable: Yes
• Manufacturer: KST
• Programmable with KST-Tool #3
