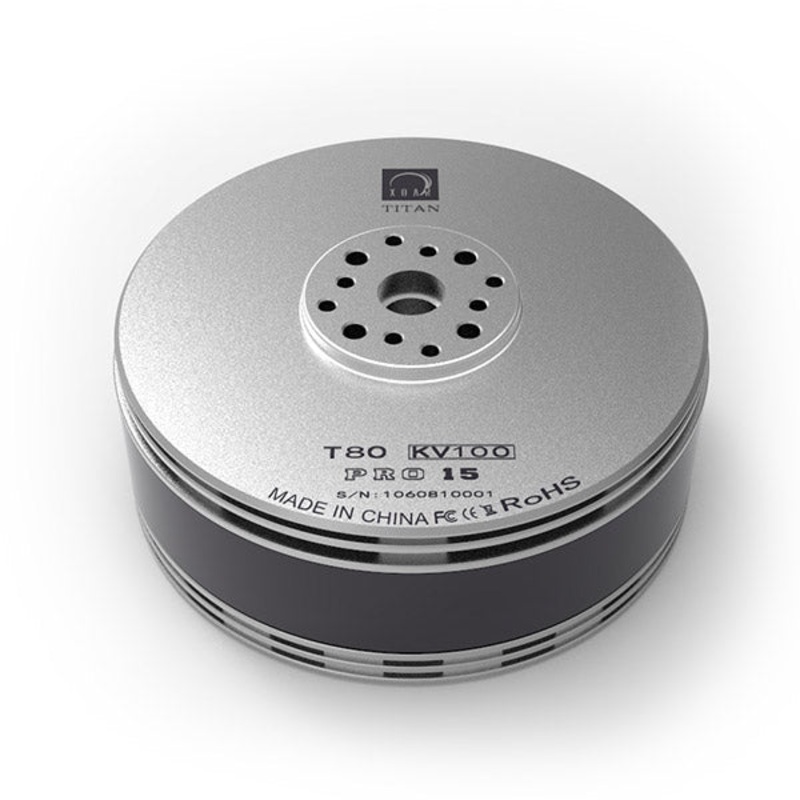

Titan Air Motor TA8015 100KV

Description

XOAR Titan Air Brushless Electric Motors are specially designed with top grade materials and unique design to work with XOAR Precision Pair Propellers in order to offer the best balance in weight and performance.

FEATURES

• Higher Thrust/Weight Ratio
• 5-8% Efficiency Higher than Competition
• Enclosed Case IP57 Dust & Water Resistant
• Durability: Over 1000 hours* with proper maintenance
• Prevision Machining
• Fast Heat Dissipation
• Dynamically Balanced

Specifications

• KV: 100
• Configuration: 36N40P
• Shaft Diameter: 15mm
• Motor Dimension: 88.66*35.9mm
• Weight: 427g
• Idle current(10): 0.8A
• No.of Cells(Lipo): 6S-12S
• Max Continuous current(A): 48A
• Max continuous Power(w): 2304W
• Internal resistance: 80m
